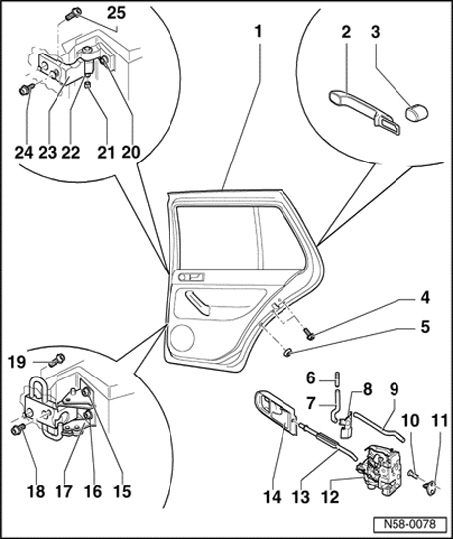

Rear Door, Assembly Overview

Rear Door, Assembly Overview

Bolts for door hinges must always be replaced after loosening.







1 - Door
2 - Door handle with backing plate
3 - Housing
4 - Bolt
- 20 Nm

5 - Cover cap
6 - Locking knob
7 - Locking rod
8 - Bell crank
9 - Locking rod
10 - Bolt
- 20 Nm

11 - Closure plate
12 - Door lock
13 - Bowden cable
14 - Interior door mechanism
15 - Bolt
- M8+28
- Only this bolt must be removed to remove door from hinge
- 20 Nm + 1/4 turns (90°) turn
- Always replace bolt after loosening

16 - Bolt
- M8x28
- Only this bolt must be removed to remove door from hinge
- 20 Nm + 1/4 turns (90°) turn
- Always replace bolt after loosening

17 - Door hinge with door arrester
- Hinge is divided

18 - Bolt
- M8x28
- Installed from vehicle interior side
- Remove lower B-pillar trim
- 20 Nm + 1/4 turns (90°) turn
- Always replace bolts after loosening

19 - Bolt
20 - Bolt
- M8x28
- 20 Nm + 1/4 turns (90°) turn
- Always replace bolts after loosening

21 - Cover cap
22 - Bolt
- 13 Nm

23 - Door hinge
- Hinge is divided

24 - Bolt
- M8x22
- Installed from vehicle interior side
- Remove lower B-pillar trim
- 20 Nm + 1/4 turns (90°) turn
- Always replace bolts after loosening

25 - Bolt
- M8x28
- 20 Nm + 1/4 turns (90°) turn
- Always replace bolts after loosening
