Fuel Door: Service and Repair

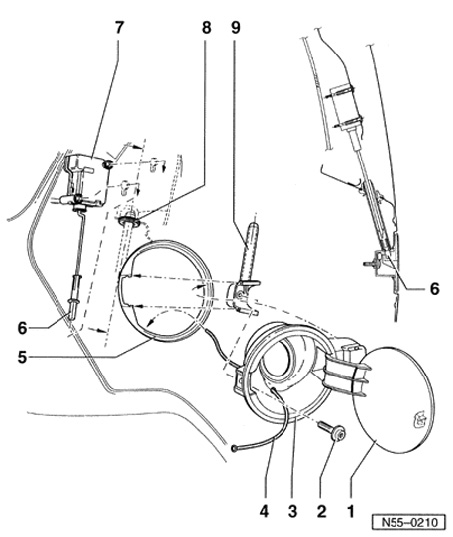

Fuel Flap Unit, Removing And Installing (Golf)







1 - Tank flap unit
- Removing
- Remove fuel tank cap.
- Press back release rod by operating remote unlocking.
- Remove bolt.
- Remove rubber part of tank filler flange and swivel out fuel flap unit from side panel.

- Installing:

Assembly piece and actuator element are installed.

- Install fuel flap unit (rubber part rolled up) with hinge side first.
- Bolt in fuel flap unit and assembly piece.

2 - Screw
3 - Tank flap cup
- Removing and installing (can only be removed as part of fuel flap unit)
- To remove fuel filler cap, press out securing pin in fuel flap unit

4 - Drain hose
5 - Side panel
6 - Release rod
7 - Actuator for fuel filler flap
8 - Seal
9 - Assembly piece
- Inserted into side panel

10 - Rubber piece
