8-Way Seat Rear Height Adjustment Drive, Removing and Installing

8-way Seat Rear Height Adjustment Drive, Removing And Installing

Removing
- Bring seat to uppermost position.
- Remove seat.
- Remove 8-way seat trim.

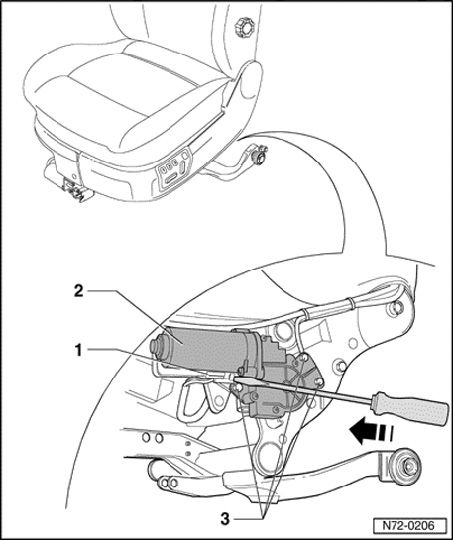

- Using a screwdriver, disconnect harness connector - 1 - in direction of - arrow -.
- Remove bolts - 3 -.







- Remove rear drive - 2 -.







Installing
- Installation is reverse of removal.
