Headlamp: Locations

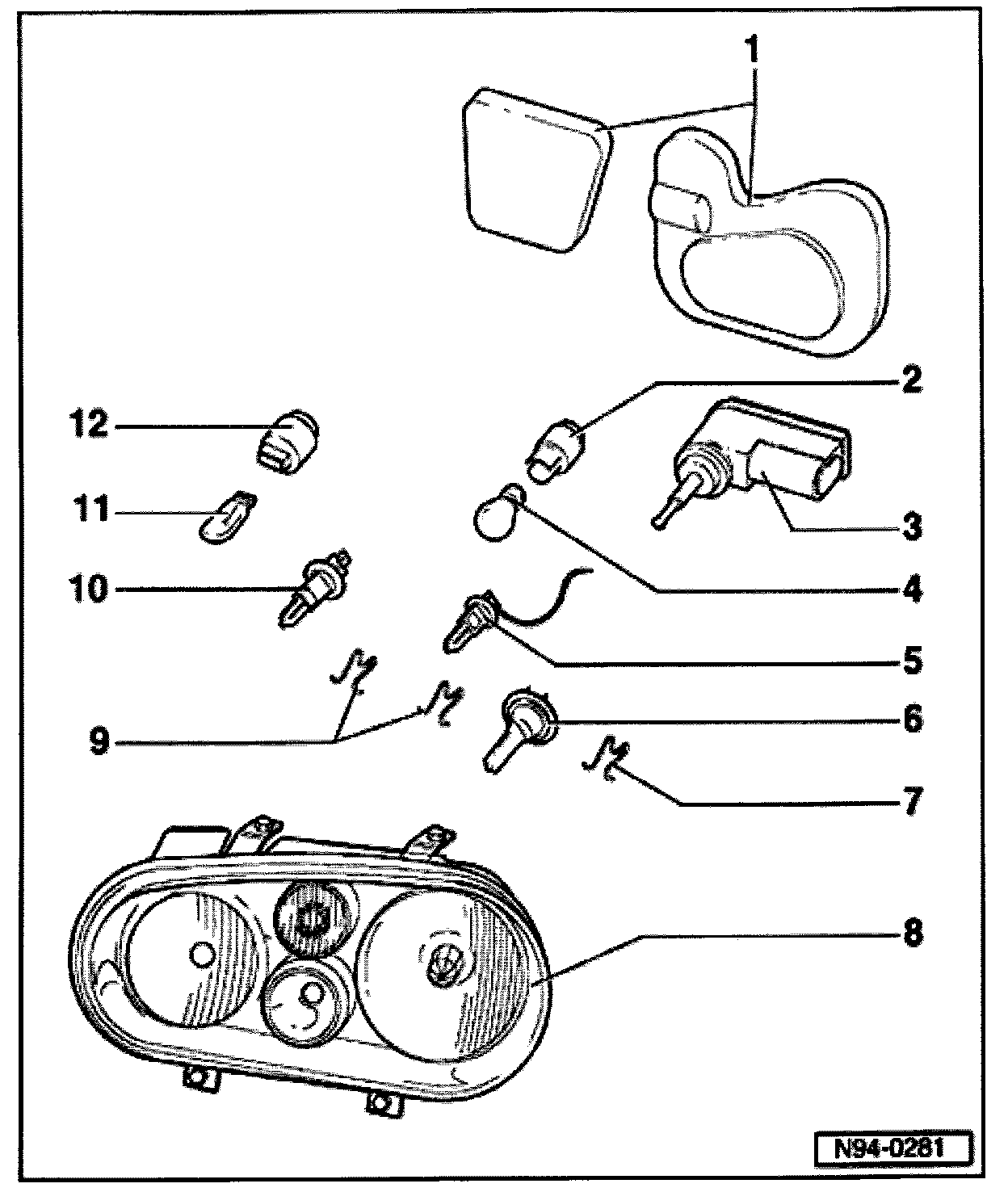

Headlights (Golf), Assembly

CAUTION!

Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch off all electrical consumers.
- Switch the ignition off and remove ignition key.
- Disconnect negative (-) battery terminal.
- When disconnecting and reconnecting battery terminals, observe all applicable notes and torque specifications, as well as instructions on performing OBD program and electrical system function checks.


NOTE:

- After performing any repairs or service that could affect headlight aim, check/adjust aim.






1 - Sealing cap
2 - Turn signal bulb holder
3 - Headlight beam adjusting motor motor*
4 - Turn signal bulb
Bulb 12 V, 21 W
5 - Fog light bulb
Bulb H3, 12 V, 55 W
6 - Low beam bulb
Bulb H7, 12 V, 55 W
7 - Spring clip
8 - Headlight housing
9 - Spring clip
10 - High beam bulb
Bulb H1, 12 V, 55 W
11 - Parking light bulb
Bulb 12 V, 5 W
12 - Parking light bulb holder

*) Where applicable
