Windows: Locations

Electric Windows, Red

Driver's side

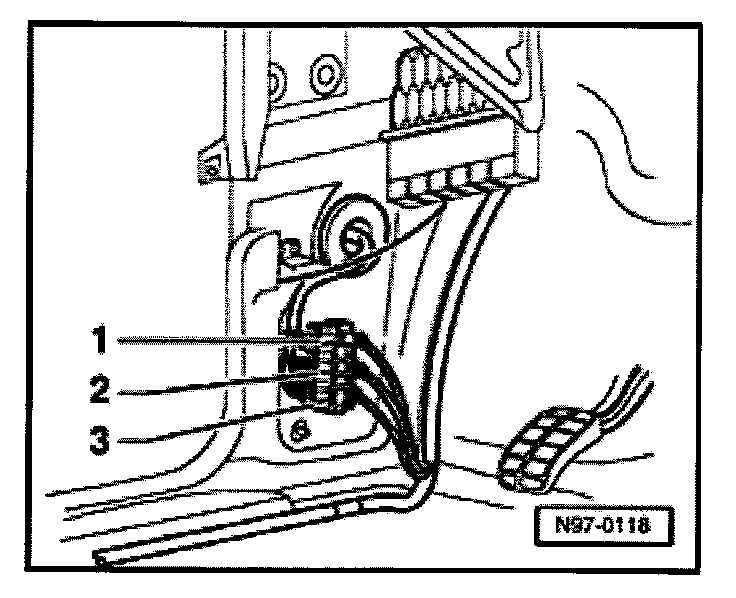

The coupling station is located in the front left footwell behind the footwell trim.

1 - Central locking
2 - Electric windows, red
3 - Electric mirror adjustment, blue


NOTE: Allocation of the coupling station on the front passenger side A pillar is a mirror image!
