Multi-Pin Connector Assignments, "Premium VI" (Incl. "Monsoon")

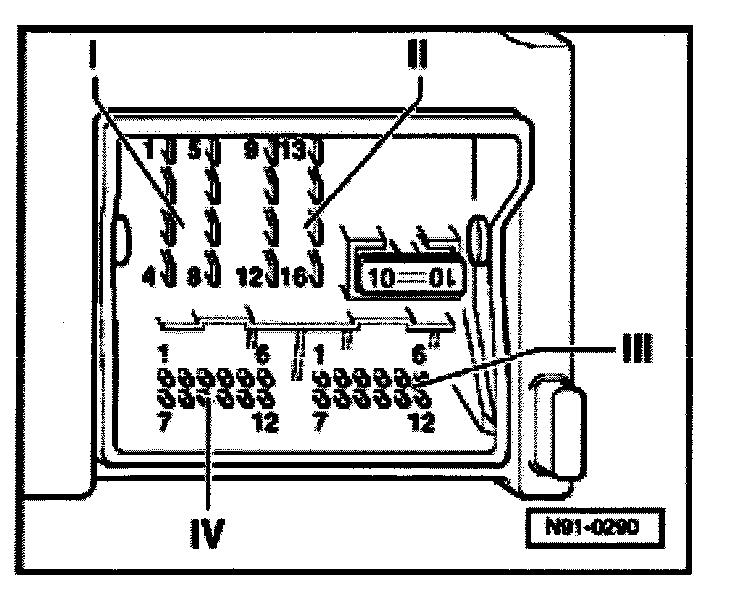

Radio Multi-pin Connector Assignments, "Premium VI" (incl. "Monsoon")

8 pin multi-connector I

1 - Speaker + right rear
2 - Speaker - right front
3 - Speaker + left front
4 - Speaker + left rear
5 - Speaker - right rear
6 - Speaker - right front
7 - Speaker - left front
8 - Speaker - left rear

8 pin multi-connector II

9 - CAN-BUS PLUS
10 - CAN-Bus minus
11 - Mute
12 - Ground (GND)
13 - Radio, Control signal
14 - Contact alarm
15 - Battery positive (B+)
16 - Signal for anti-theft alarm

12 pin multi-connector III*

1 - 5 Open
6 - Signal for telephone minus (-)
7 - 11 Open
12 - Signal for telephone plus (+)

12 pin multi-connector IV

1 - Open
2 - CD changer - left and right channel, Ground (GND)
3 - Open
4 - CD changer - Positive (B+) supply
5 - Open
6 - CD changer - DATA OUT
7 - Open
8 - CD changer - left channel, CD/L
9 - CD changer - right channel, CD/L
10 - CD changer - Control signal
11 - CD changer - DATA IN
12 - CD changer - CLOCK

*) Where applicable
