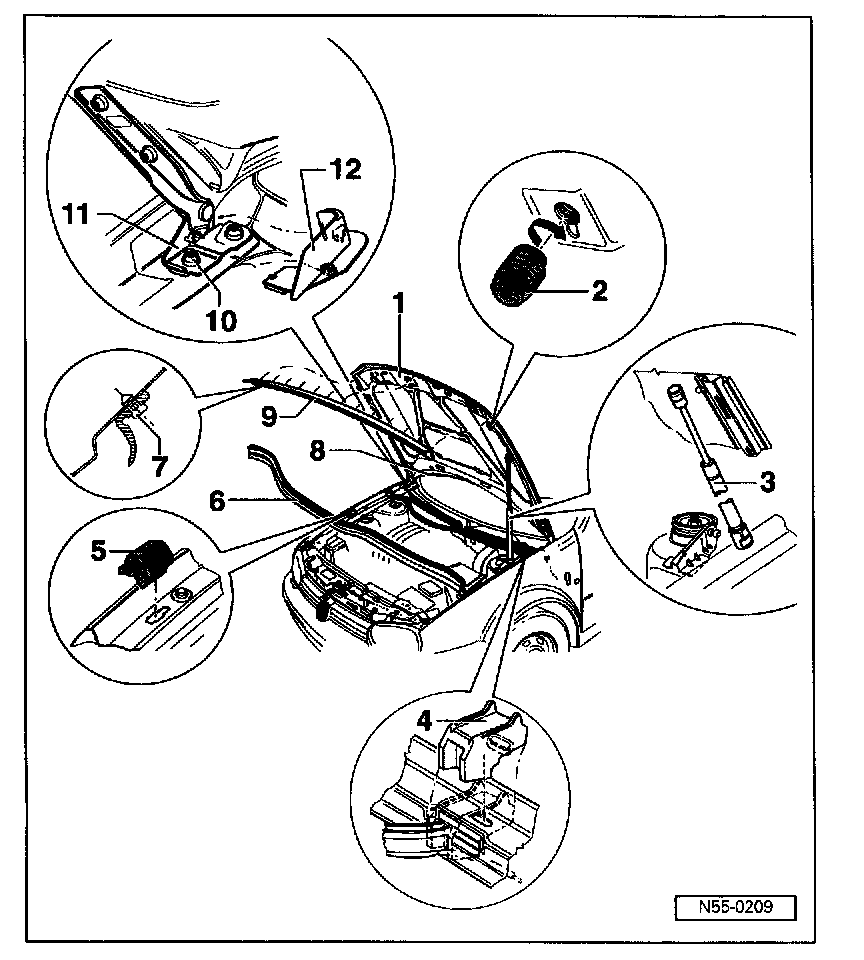

Hood: Adjustments

Align the hood between the fenders by moving the hinges within the over-sized holes.





Using the rubber stops -2-, the hood can be adjusted for height relative to the fender.

Check shut lines/gaps.

After installation of adjusting, treat hinges and bolts with corrosion protection.
