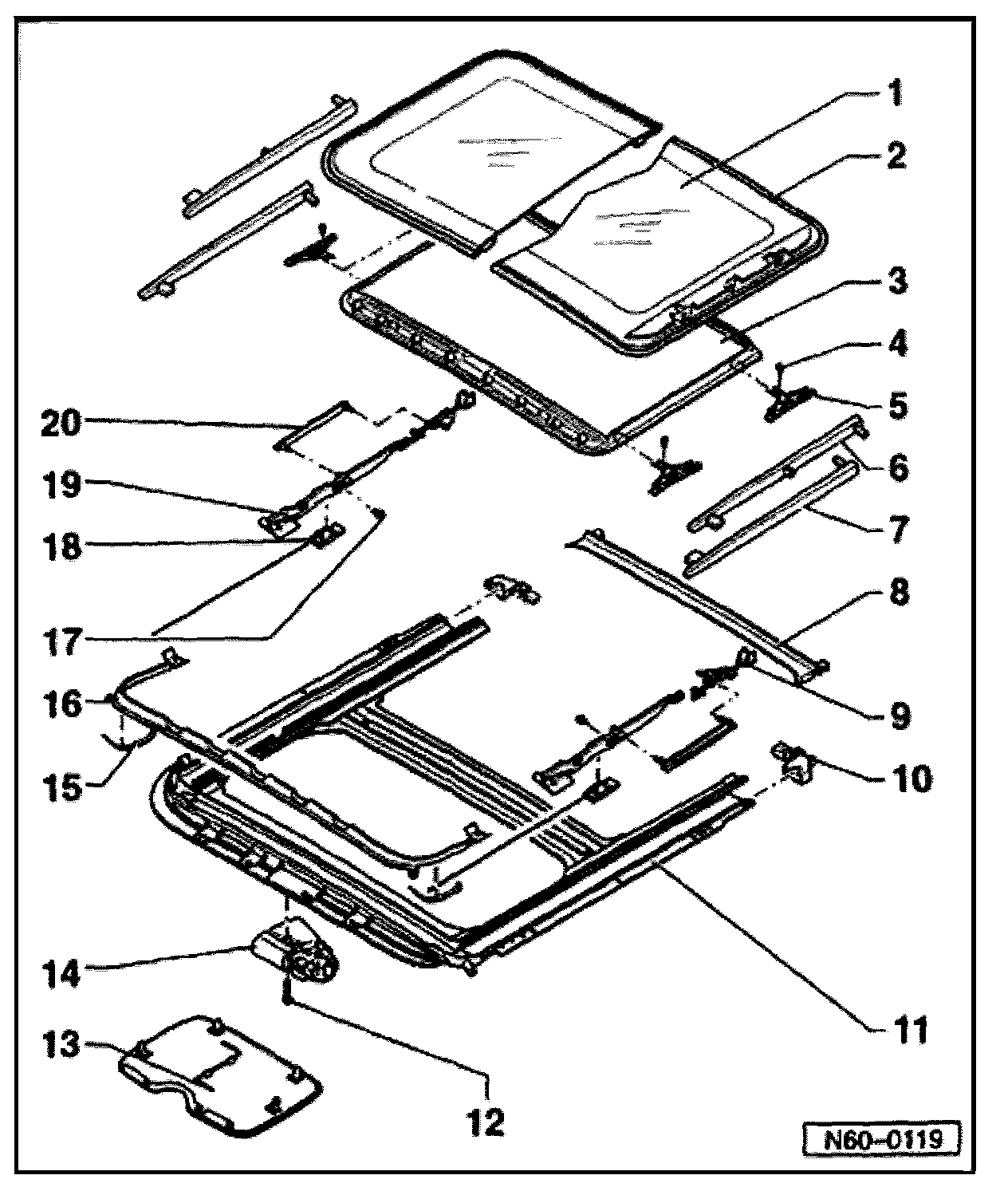

Sunroof With Glass Panel, Assembly Overview







1 - Glass panel for sunroof (single pane safety glass)
2 - Panel seal
- Seal joint located centrally at rear
3 - Sliding headliner
4 - Countersunk - screws (micro-encapsulated)
- Always use new countersunk screws
- 3.5 Nm (31 in. lb)
5 - Slide
6 - Upper trim
7 - Lower trim
8 - Water channel
- Removed together with carrier unit
9 - Guide locking hook
10 - End piece
- Use butyl adhesive sealing cord AKL 450 005 05 to seal
11 - Carrier unit
- If required, guide channels are to be greased with special grease, G 000 450 02 only, otherwise correct operation cannot be guaranteed.
12 - Bolt
13 - Cover
- With Allen key for emergency opening
14 - Drive motor
15 - Spring
16 - Wind deflector
17 - Torx (R) screw
- Torx key T 25
- 4.5 Nm (40 in. lb)
18 - Rear guide
- Removed together with slotted guide rail.
19 - Slotted guide rail
20 - Spacer
- Removed together with slotted guide rail.
