Test Step Overview

Test step overview

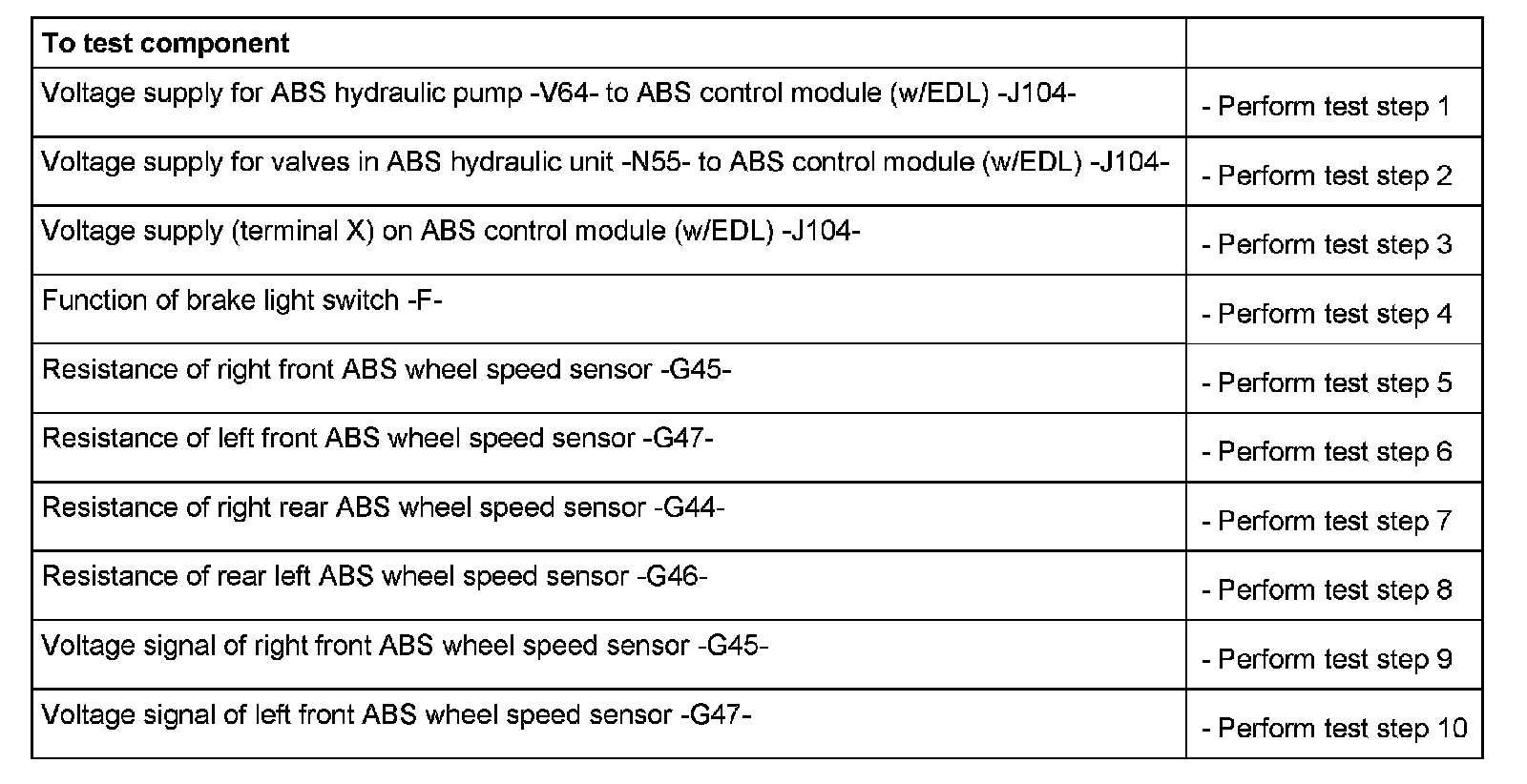

Part 1 Of 2:

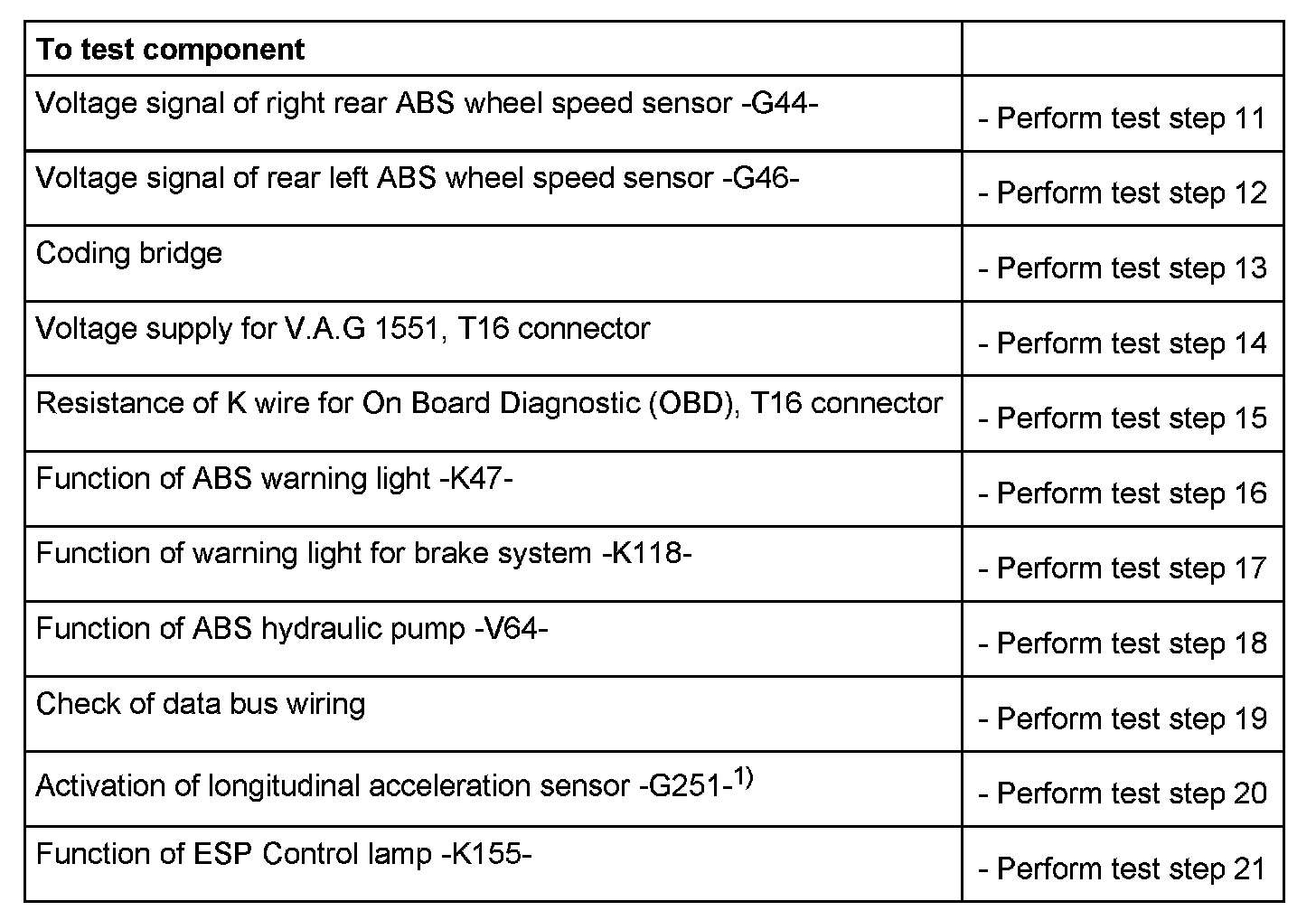

Part 2 Of 2:

1) All-wheel drive vehicles with Haldex coupling only.

Test table

Notes on test table
- The socket designations of adapter V.A.G. 1598/21 are identical to the control module -J104 contact designations in wiring diagram.
- If the readings obtained deviate from the specifications, carry out repair measure in the right-hand part of the table.
- Continuity checks with adapter set V.A.G. 1594 A (bridging).
- If the measured figures only deviate slightly from the specifications, clean sockets and connectors of the testers and adapter cables (with contact spray G 000 700 04) and repeat check. Before replacing components, check wiring and connections and also, particularly for specifications of less than 10 ohms, repeat resistance check on the component.
