License Plate Lamp: Service and Repair

License Plate Light, Removing And Installing

Removing:

- Switch off all electrical consumers, switch off ignition key and remove ignition key.

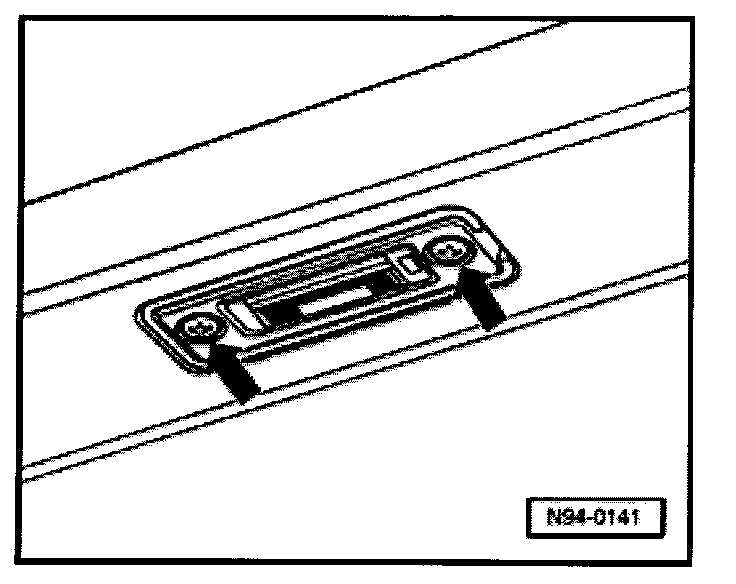

- Remove screws -arrows-.
- Remove lens with bulb.
- Remove bulb (12 Volt/5 Watt)

Installing:

Install in reverse order of removal.

NOTE:

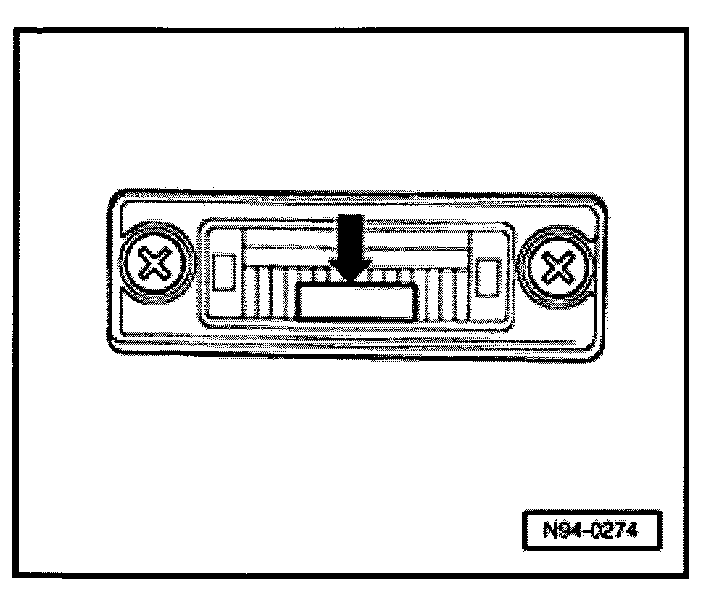

- The license plate light lense contains a silver reflector strip -arrow-. This must always face the bumper when installing.
