M/T - Hard to Engage/Disengage Reverse Gear

34 06 05

Dec 8, 2006

2005766

34 06 05 Dec 8, 2006 Supersedes Technical Bulletin Group 34 number 04-01 dated January 23, 2004 due to inclusion into ElsaWeb and updated part number.

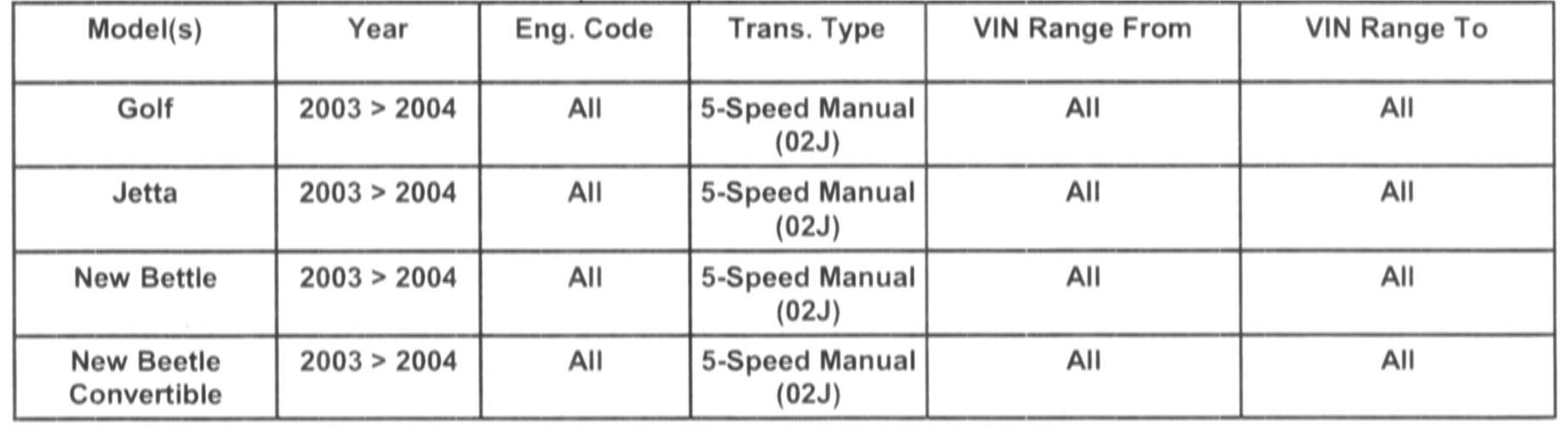

Vehicle Information

Condition

Reverse Gear Difficult To Engage or Disengage

Technical Background

Production Solution

Service





Remove back up light switch and check if ball end on switch is damaged. If no visible damage can be found on ball end, press ball end in with slight lateral pressure and check for ease of movement.

If ball end is damaged / jammed, or if after switch is removed shifting is significantly easier.

^ Install new back up light switch, Part No. 02K945415G. See ElsaWeb. Repair Manual Group 34 - Manual Transmission Controls.





Warranty

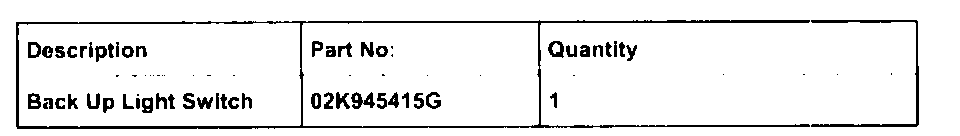

Required Parts and Tools

Part number(s) are for reference only. Always see ETKA for the latest parts information.

Special Tools required
