Input Shaft

4 Speed Automatic 01M

Input gear, adjusting
Special tools and equipment

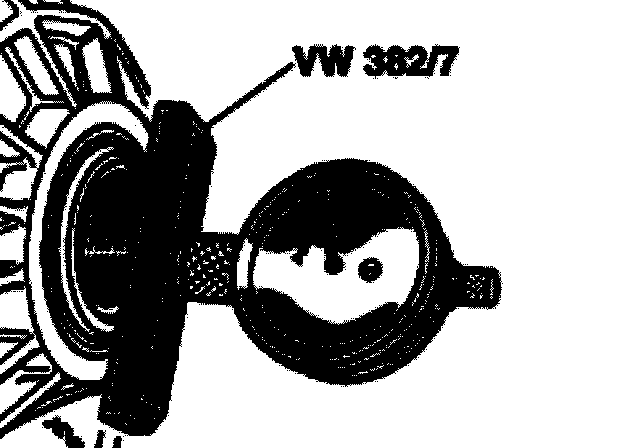

- VW 382 Measuring appliance

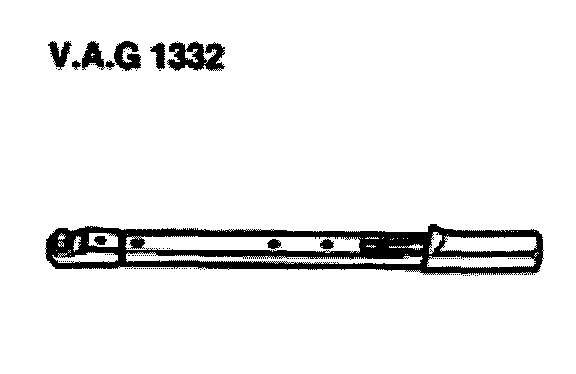

- V.A.G 1332 Torque wrench
- Dial gauge

Conditions:





- Tighten socket head fastener to 100 Nm without dished washer and without shim.

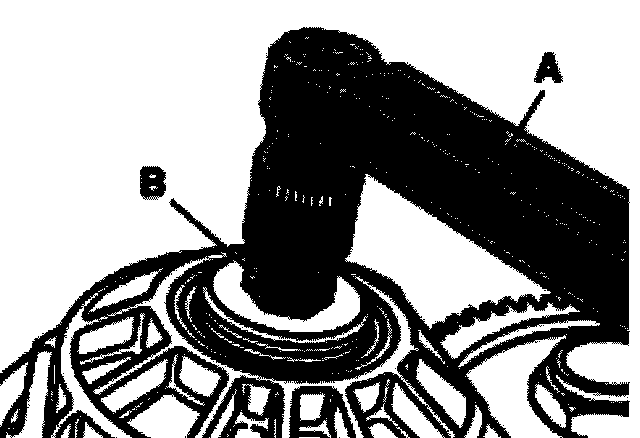

A - Torque wrench
B - 22 mm socket
The parking lock must be engaged.
- Remove socket head fastener.





- Measure distance between input gear and tapered roller bearing inner race.
- Insert dial gauge and zero with a preload of 3 mm. Note reading (example 1.00 mm).
Thickness of dished washer 1.50 mm must be added to reading of = 2.50 mm.

Determining shim

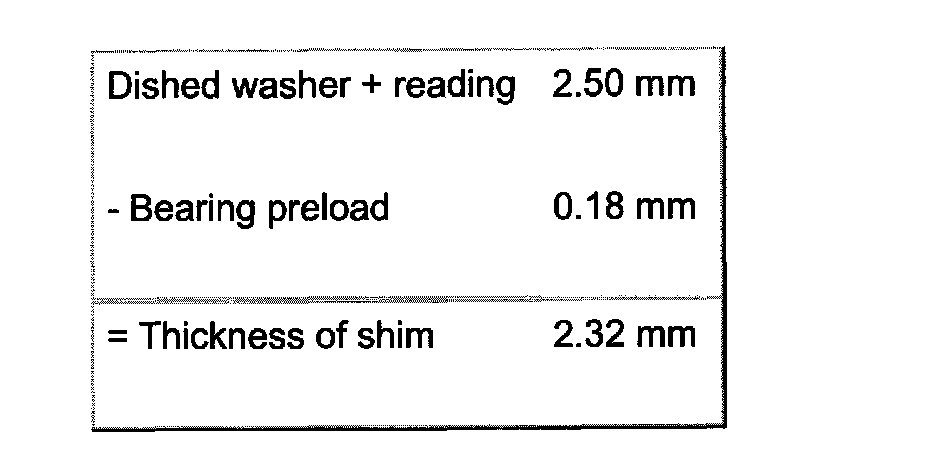

The specified preload is achieved if the bearing preload of 0.18 mm is subtracted from the figure obtained from the measurement (dished washer + reading) of 2.50 mm.

Example:





- Determine shim from table and fit onto drive shaft. Table of shims.
- Insert axial needle bearing and tighten socket head fastener including dished washer to 250 Nm.

Note: Insert axial needle bearing for input shaft before tightening socket head fastener.
