Engine Mount

Engine/transmission mounts
Tightening torques





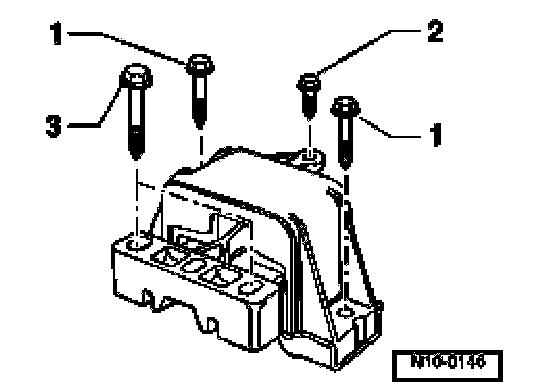

Engine mount assembly
1. Mount to body 1) 40 Nm (30 ft. lbs.) + 90° (1/4 turn)
2. Mount/bracket to body 25 Nm (18 ft. lbs.)
3. Mount to engine bracket 1) 60 Nm (44 ft. lbs.) + 90° (1/4 turn)
1) Always replace





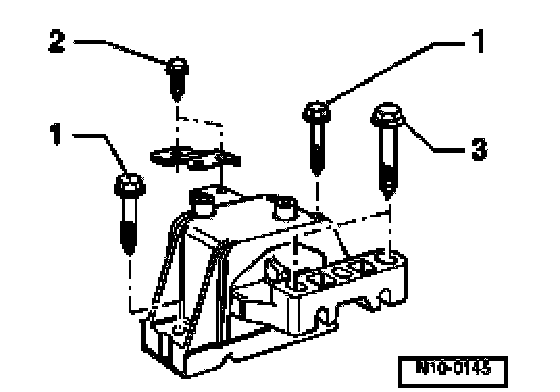

Transmission mount assembly
1. Mount to body 1) 40 Nm (30 ft. lbs.) + 90° (1/4 turn)
2. Mount to body 25 Nm (18 ft. lbs.)
3. Bearing on transmission case 1) 60 Nm (44 ft. lbs.) + 90° (1/4 turn)
1) Always replace

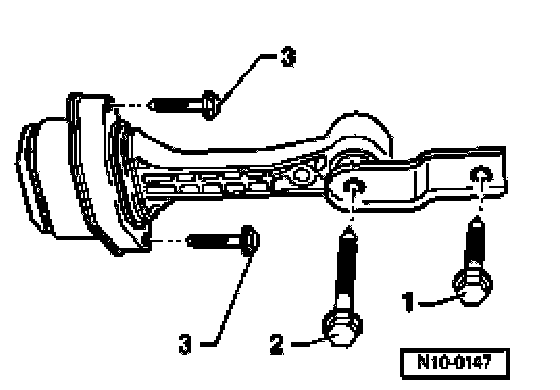

Pendulum support
1. Pendulum support to transmission 1) 40 Nm (30 ft. lbs.) + 90° (1/4 turn)
2. Pendulum support to transmission 1) 40 Nm (30 ft. lbs.) + 90° (1/4 turn)
3. Pendulum support to engine/transmission 1) 20 Nm (15 ft. lbs.) + 90° (1/4 turn)
1) Always replace
