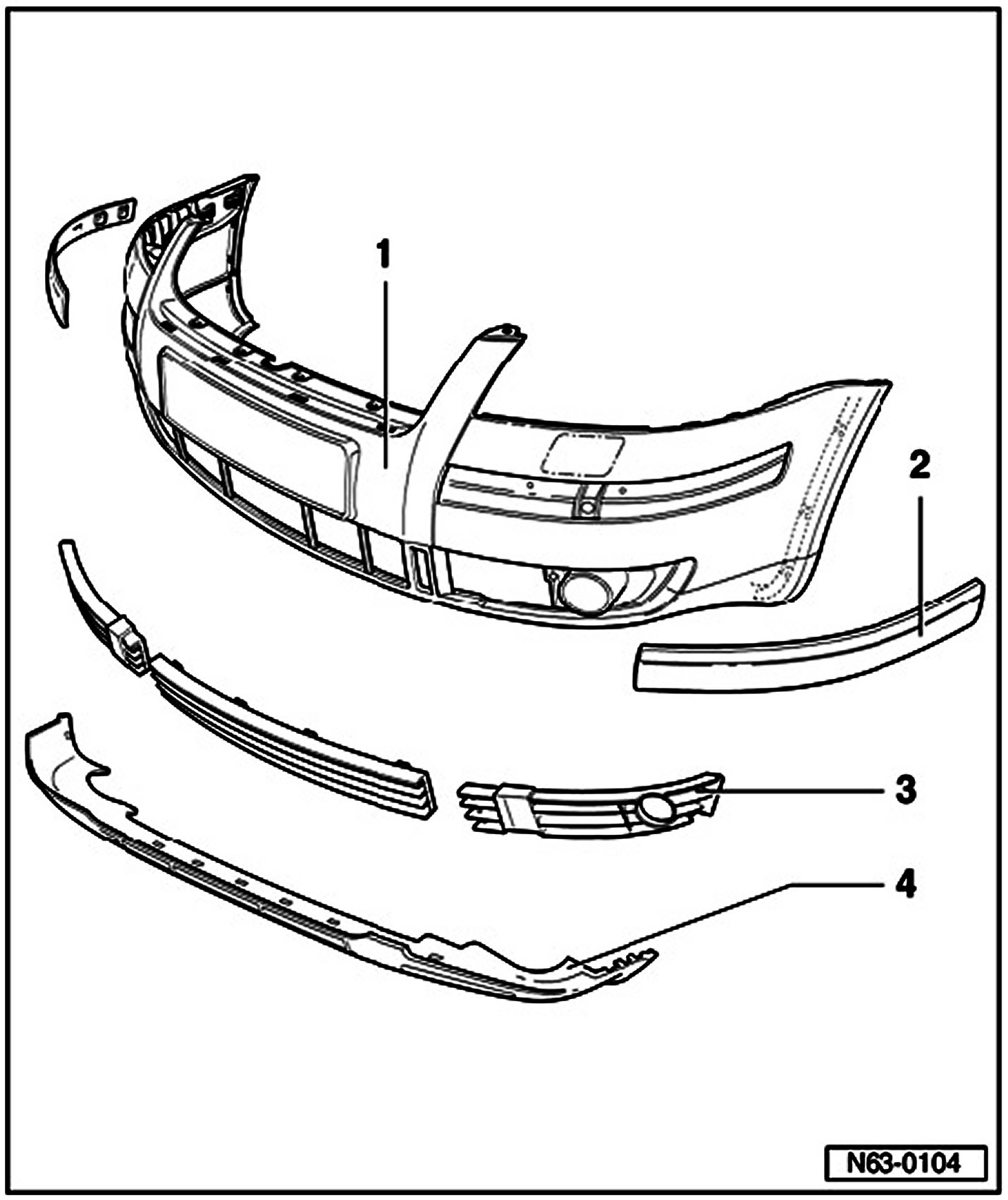

Front Bumper Cover Accessories, Assembly Overview

Front Bumper Cover Accessories, Assembly Overview 10.00 -->







1. Cover
Material - PP/EPDM
Separate license plate holder, only for US-vehicles.
Installing license plate holder. Service and Repair

2. Bumper strip
Clipped in cover.
With side marker lamp (only US-vehicles).

3. Ventilation grid
Consists of three parts and is clipped to cover.

4. Spoiler
Clipped in cover.
Does not need to be removed when removing cover.
