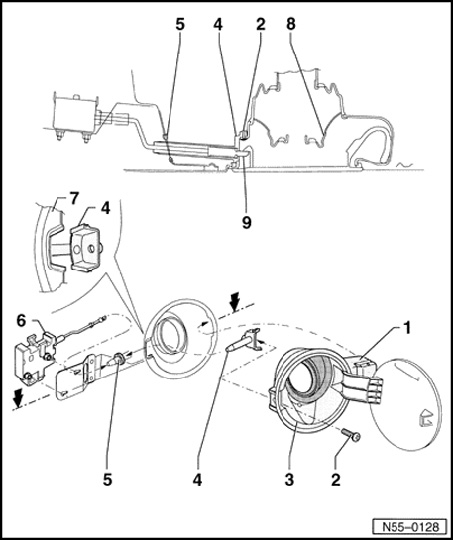

Tank Flap Unit, Assembly Overview

Tank Flap Unit, Assembly Overview







1 - Tank flap unit
2 - Bolt
- 1.5 Nm

3 - Tank flap cup
- Can only be removed as tank flap unit.
- To remove fuel filler cap, press out securing pin in tank flap unit.

4 - Assembly piece
- Inserted into side panel.

5 - Seal
6 - Fuel filler flap positioner
7 - Side panel
8 - Rubber part
- Roll up rubber part to install.

9 - Release rod
