Side Seat Trim Panels, Removing and Installing

Side Seat Trim Panels, Removing And Installing

NOTE: Removing and installing of trim for Recaro seat is described for right side of vehicle. The same instructions apply for removal and installation of Recaro seat trim for the left side.

Removing
- Remove Recaro seat.
- Remove belt buckle.
- Remove trim, backrest mounting bracket.

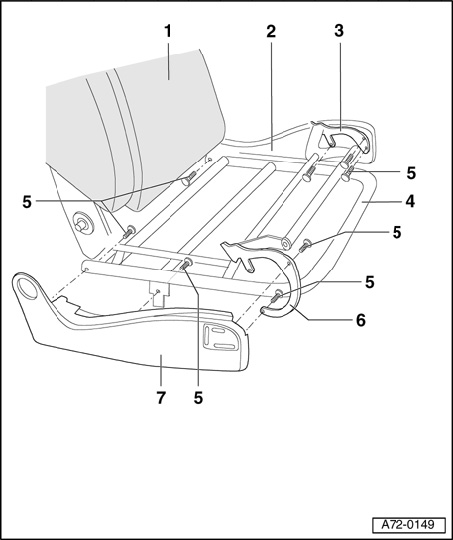

- On side seat trim, disconnect wiring harnesses of switch unit and disconnect wiring harnesses from seat frame - 4 -.
- Unscrew four bolts - 5 - each on both sides of seat.
- Remove inner side seat trim - 2 - from bracket - 3 - and backrest - 1 -.
- Remove outer side seat trim - 7 - from bracket - 6 - and backrest - 1 -.

Installing
Installation is the reverse order of removal.
