Technical Data



Technical data

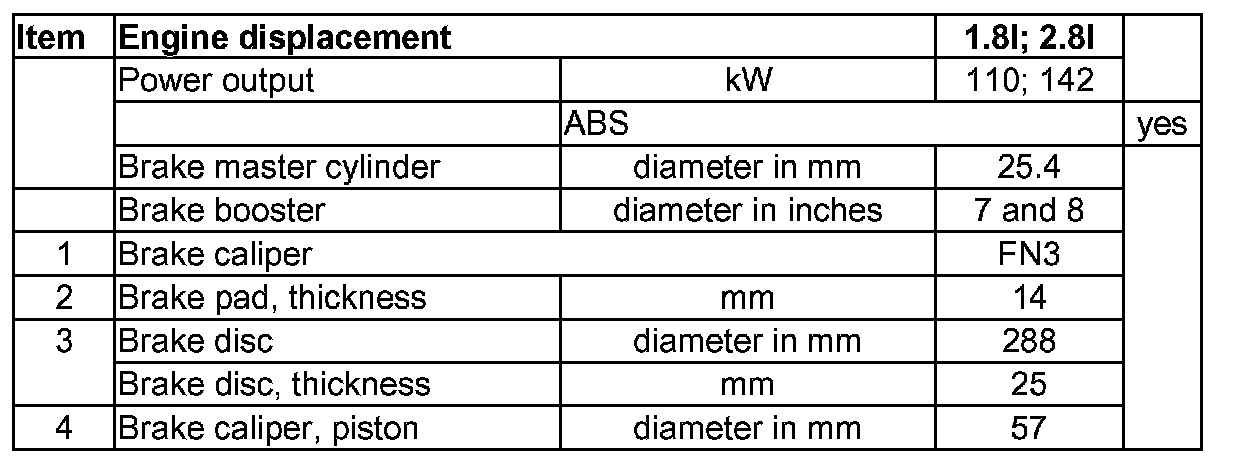

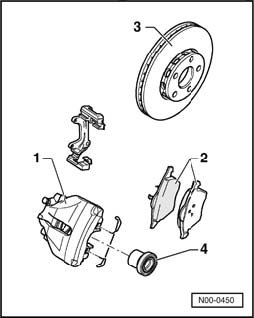

Vehicles with front brake caliper FN3 up to VIN 3B X 124 107

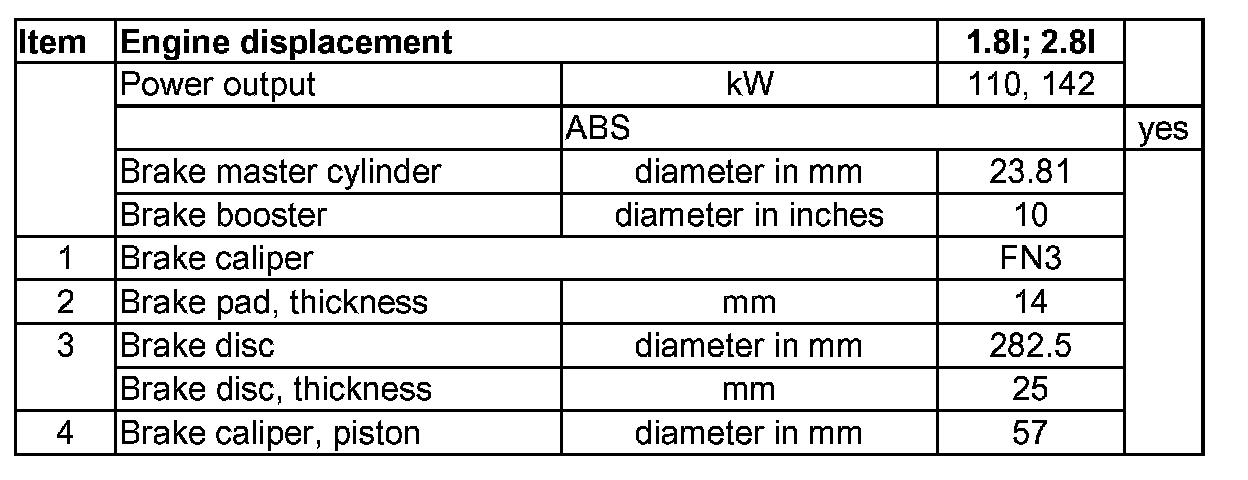

Vehicles with front brake caliper FN3 from VIN 3B X 124 108 to VIN 3B X 600 000

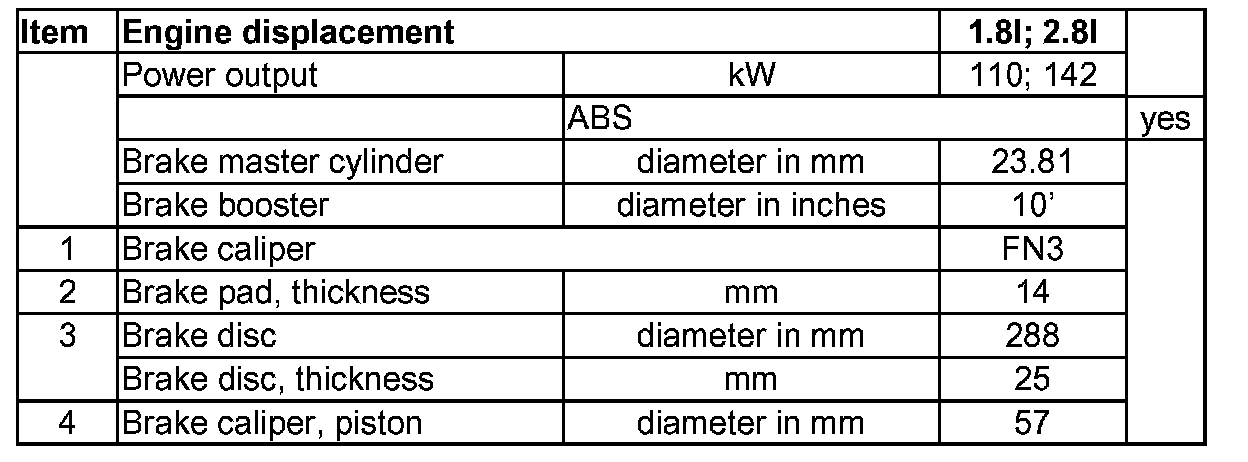

Vehicles with front brake caliper FN3, model year 2000

Vehicles from VIN 3B Y 000 001








Vehicles with brake caliper FN3, 15" wheel from model year 2001








Vehicles with front brake caliper FN3, 16" wheel from model year 2001

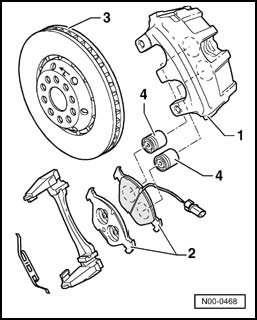

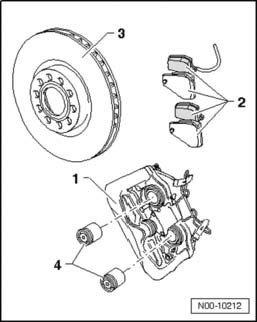

Vehicles with front brake caliper HP2, 16" wheel from model year 2002

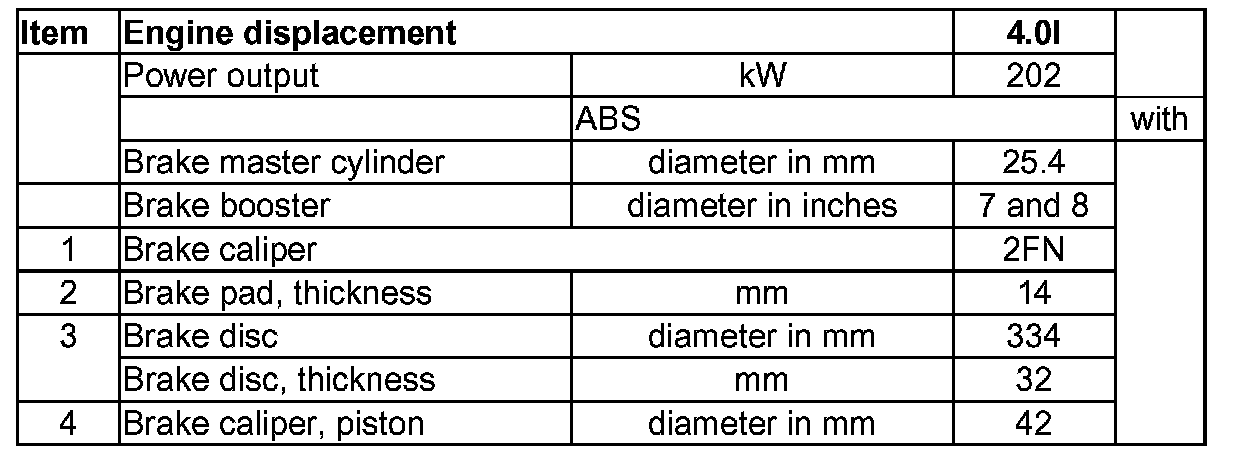

Vehicles with front brake caliper 2FN, 17" wheel from model year 2002

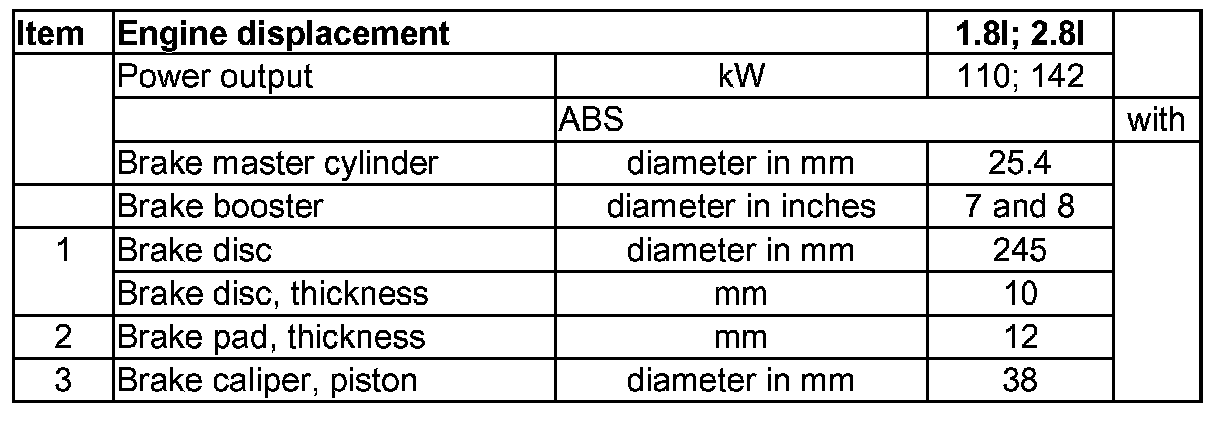

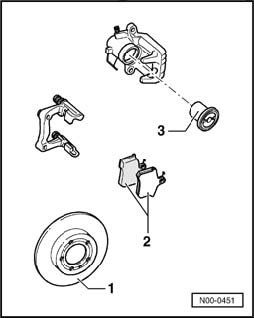

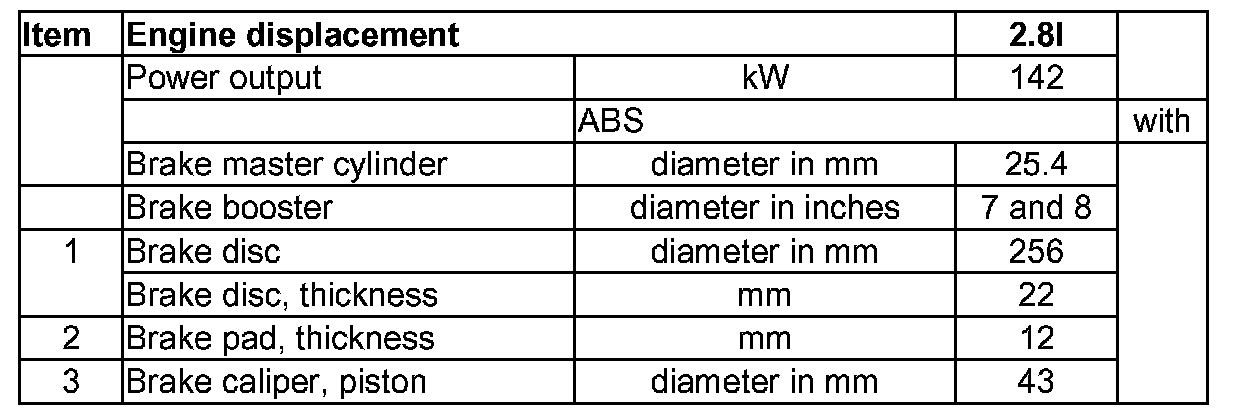

Vehicles with rear disc brakes, 15" wheel up to model year 1999

Vehicles up to VIN 3B X 600 000

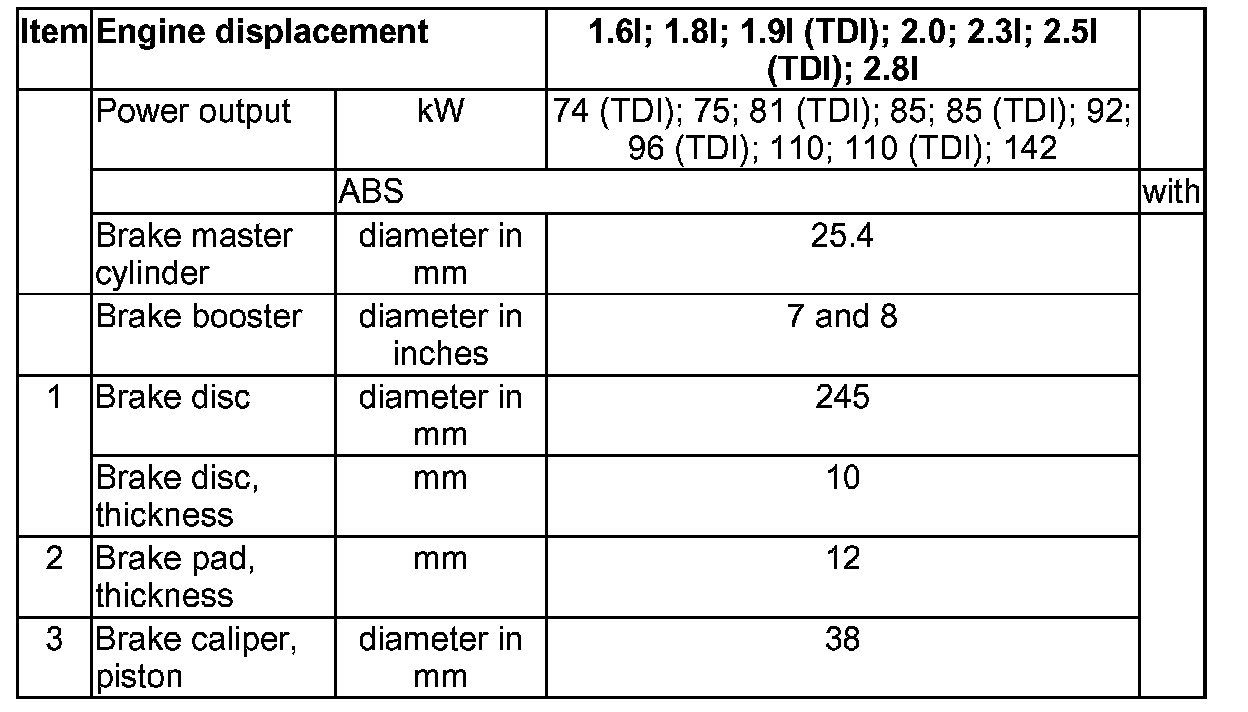

Vehicles with rear disc brakes, 15" wheel, model year 2000

Vehicles from VIN 3B Y 000 001

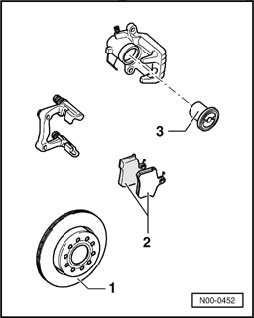

Vehicles with rear disc brakes, 15" and 16" wheel, front-wheel drive, from model year 2001








Vehicles with rear disc brakes, 15" wheel, All Wheel Drive (AWD), from model year 2001








Vehicles with rear disc brakes, 16" wheel in, All Wheel Drive (AWD), from model year 2001

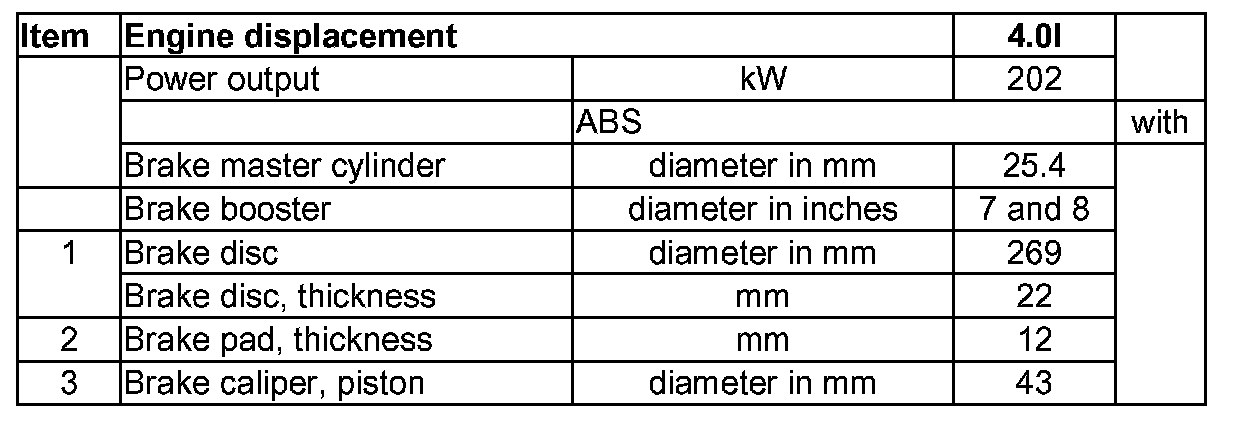

Vehicles with rear disc brakes, 16"/17" wheel, All Wheel Drive (AWD), from model year 2002
