Air Cleaner Housing: Service and Repair

Air Filter, Disassembling And Assembling

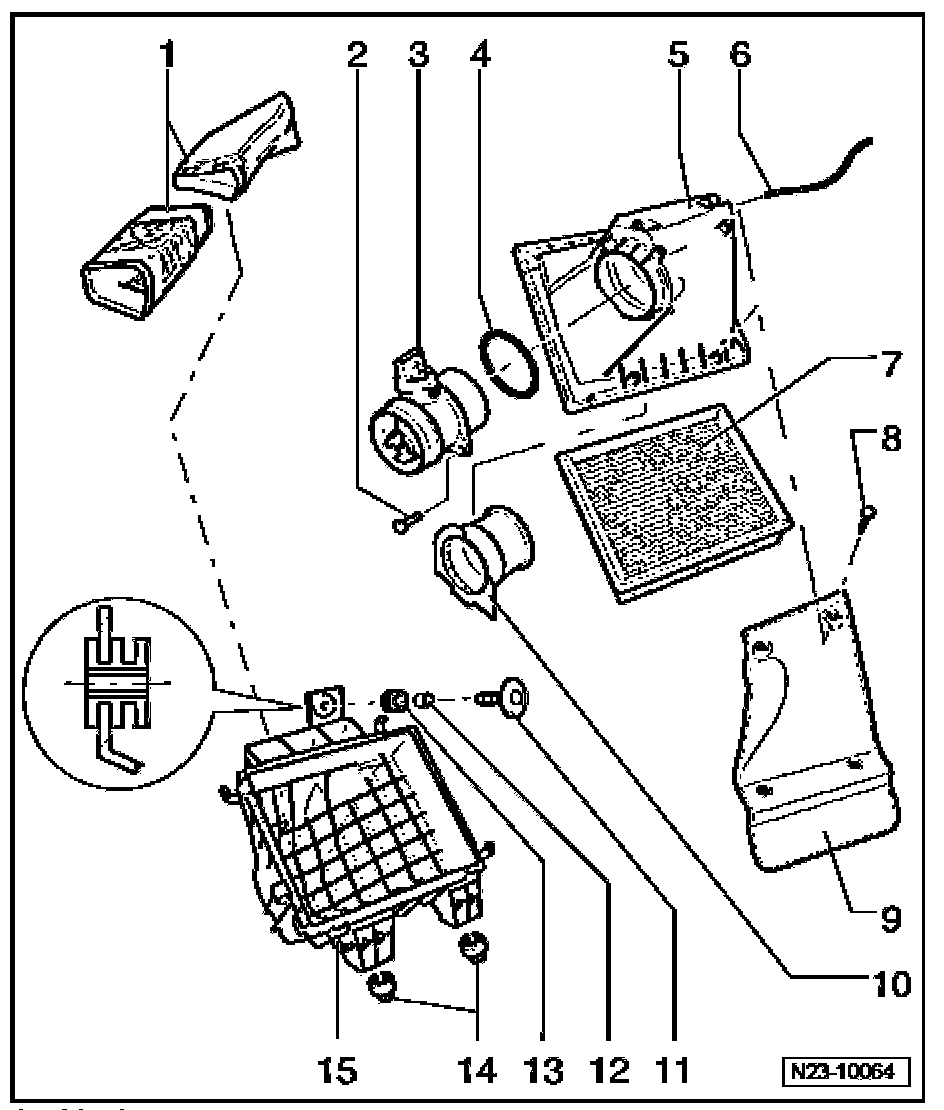

1. Air ducts
- To lock carrier
2. 3.5 Nm
3. Mass Air Flow (MAF) Sensor -G70-*
4. Seal
- Replace if damaged
5. Upper section of air filter
6. Vacuum hose
- To wastegate bypass regulator valve -N75-
7. Filter element
8. 2.5 Nm
9. Heat shield
10. Connection
11. 10 Nm
12. Spacer sleeve
13. Rubber grommet
14. Base plate
15. Lower section of air filter.
