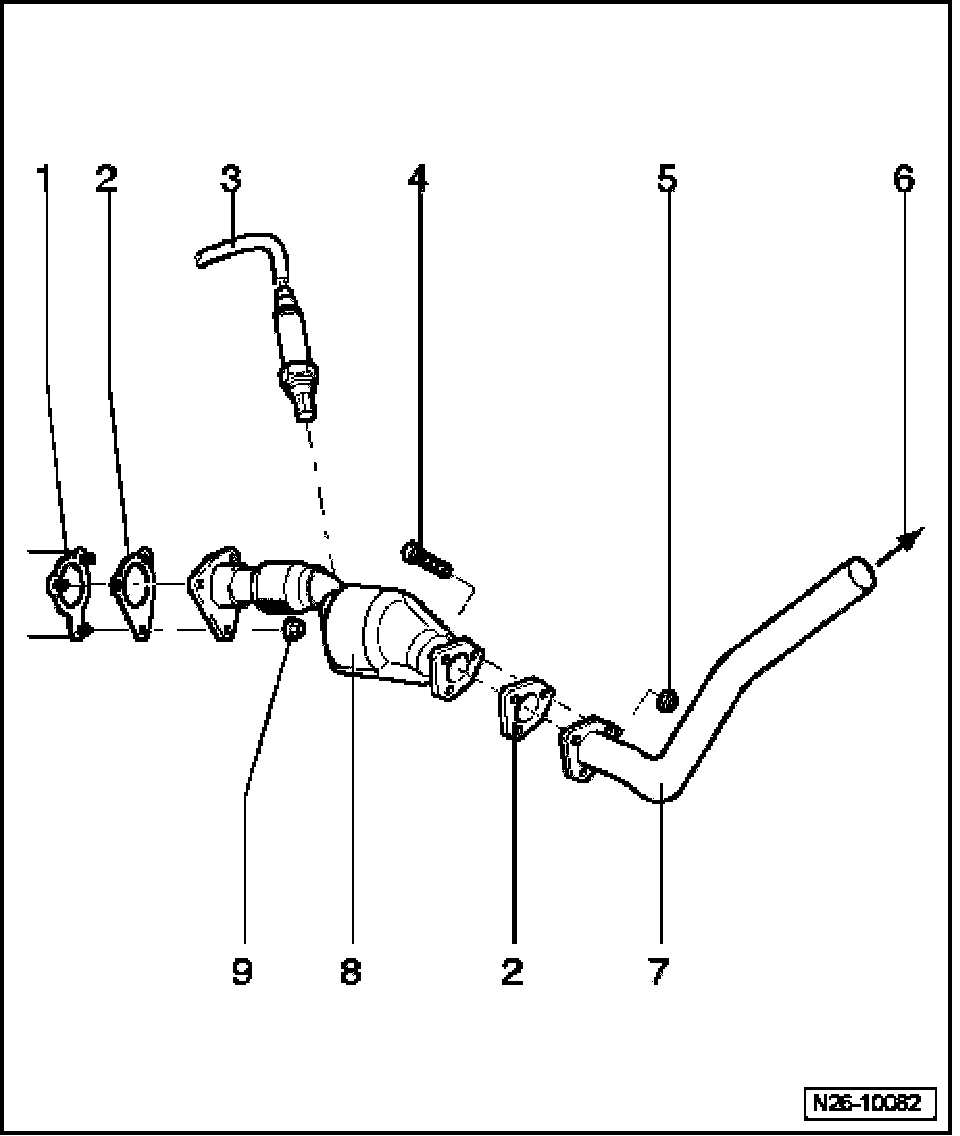

Front Exhaust Pipe and Catalytic Converter With Attachments

Front Exhaust Pipe And Catalytic Converter With Attachments







1. Turbocharger
2. Gasket
- Always replace
3. Heated Oxygen Sensor (HO2S) -G39-*
- Only grease threads with G 052 112 A3 high temperature lubricant, do NOT allow high temperature lubricant to get into slots on sensor body
- Oxygen sensor heater, checking
- Oxygen sensor and oxygen sensor control.
4. Bolt
5. 25 Nm
- Always replace
6. To center muffler
7. Front exhaust pipe
8. Catalytic converter
9. 25 Nm
- Always replace
