Rear Light Housing - Sedan, Removing and Installing

Rear Light Housing - Sedan From 10.00, Removing And Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

- Fold luggage compartment trim behind rear light to side.
- Remove bulb holder.

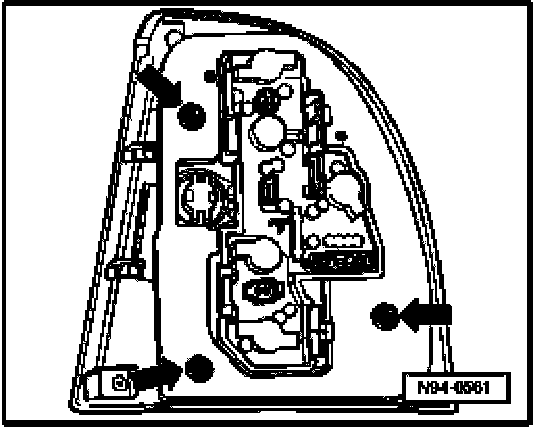

- Remove three screws -arrows- and remove housing.

Installing
- Insert housing into opening.
- Install and tighten nuts, 3 Nm (27 in lb).
- Install bulb holder and reconnect electrical connectors.
- Refit luggage compartment trim.
