Power and Ground Distribution: Service and Repair

Housing For Control Modules In Plenum, Removing And Installing

Removing
- Disconnect battery.
- Remove cap in windshield cowl panel under the left wiper arm (move wiper arm if necessary).







- Remove screw for housing cover underneath cowl panel as illustrated.
- Remove remaining screws -arrows- and take off housing cover.
- Remove Engine Control Module (ECM). (If necessary, remove eight position auxiliary relay panel and fuse panel).
- Disconnect all electrical connectors at connector station.
- Slide rubber grommet and wiring harness for engine controls up and out of slot in housing.

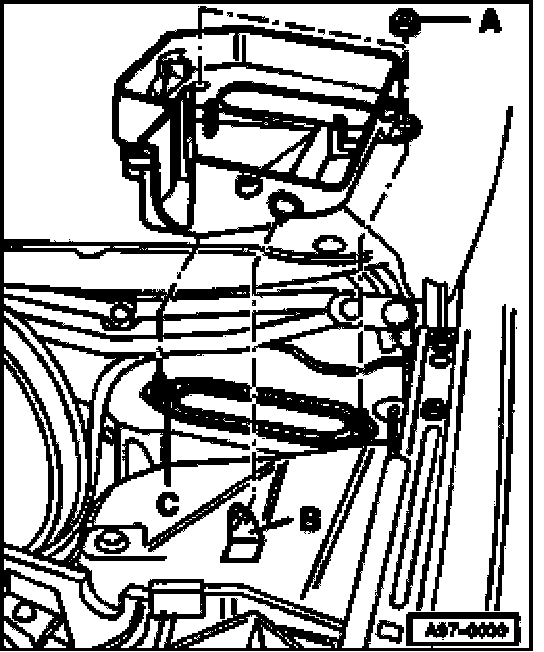

- Remove nuts -A-, 4 Nm (35 in lb).
- Push housing to rear (into plenum) to disengage from retainer bracket -B- and remove housing.

Installing
Install in reverse order of removal.

Installation Notes:
- Always replace gasket - C -. Do not allow gasket to block or interfere with opening in plenum for harnesses.
- When installing cover for housing, engage into tab and press firmly into place by hand first. Cover screws MUST be torqued to 4 Nm (35 in lb).
