ATF, Topping Off

ATF, topping off, 01V, 5 SPD. A/T (FWD)

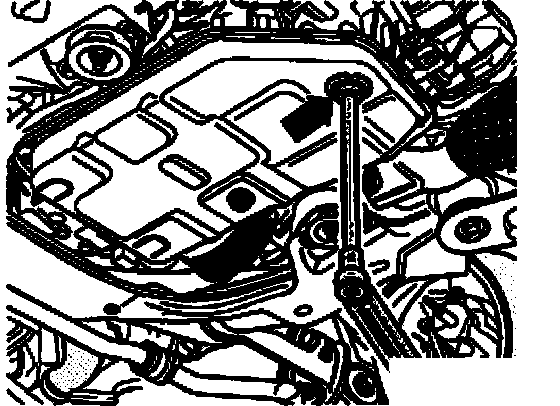

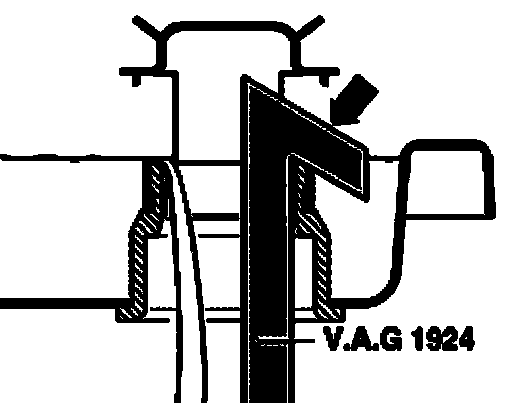

- Guide VAG 1924 in through an opening -arrow- in the deflector cap, taking care not to push the deflector cap upward out of position.

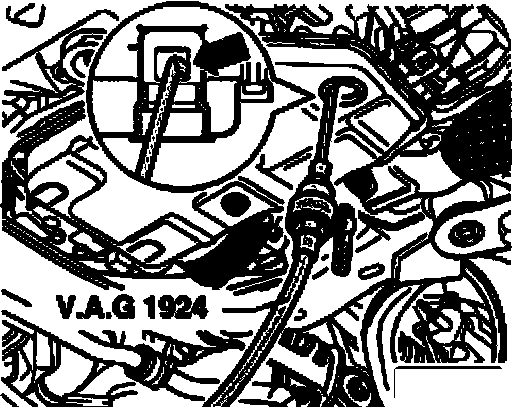

- Fill with ATF using VAG 1924 -arrow- until ATF comes out of inspection hole.





- Install new O-ring on ATF inspection plug and tighten to 80 Nm.
- Switch off engine.
