Clutch "B", Assembly Overview

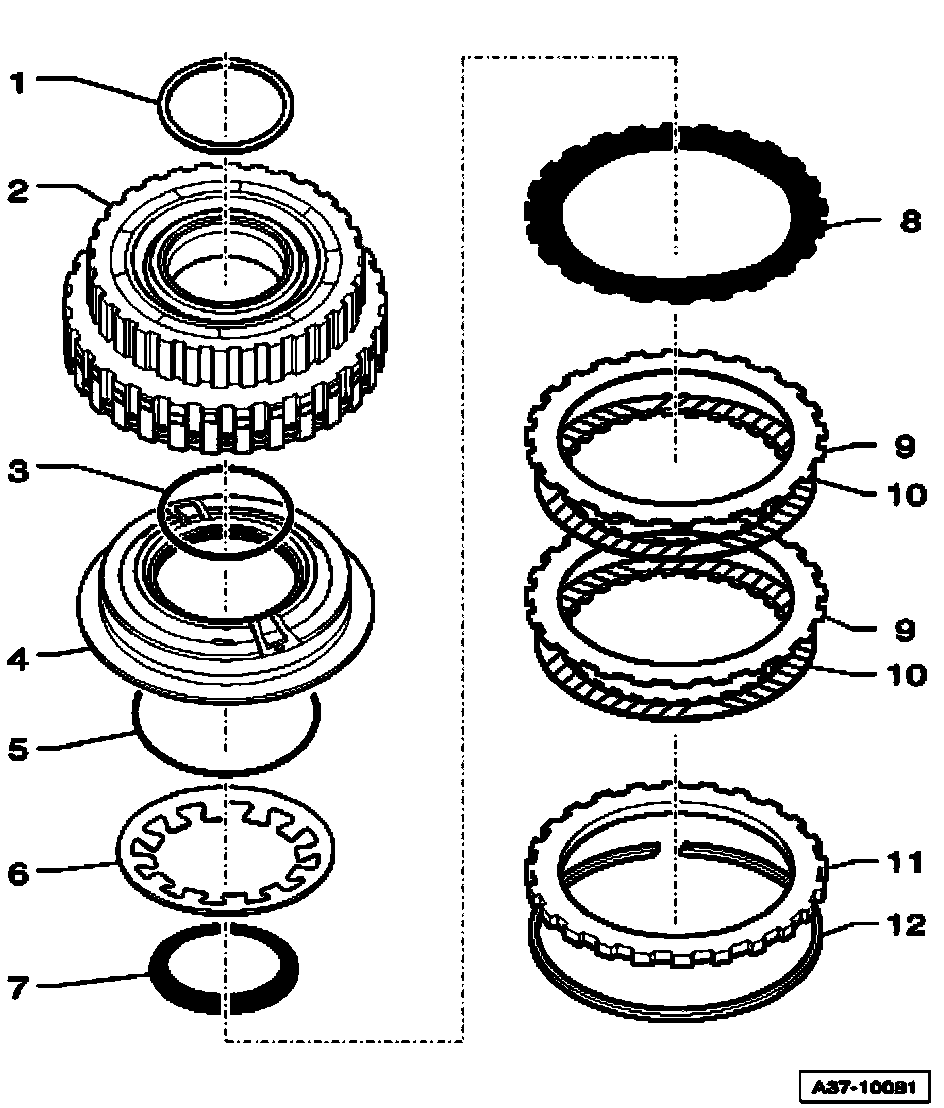

Clutch "B", assembly overview, 01V, 5 SPD. A/T

Note:
^ Some of the depicted components are part of component groups and are not available separately as replacement part.
^ Before assembling, check individual components of clutch "B" for wear and damage.

CAUTION: Illustration depicts current construction version of clutch "B" with wave washer, 2x outer plates and 2x coated plates. Always replace clutch "B" without wave washer, 3x coated plates and 3x outer plates on older construction versions.





1. Adjustment shim
2. Cylinder "B"
3. O-ring
^ Replace

4. Piston "B"
5. O-ring
^ Replace

6. Dished washer
7. Split retaining ring
^ Bent side at right angle faces dished washer

8. Wave washer
9. Outer plates
10. Coated plates
11. Thick outer plate
12. Circlip
^ Determining thickness
