Telematic Control Head

Telematic Control Head -E264-, removing and installing

Removing

CAUTION: Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.
- Disconnect negative (-) battery terminal.
- When disconnecting and reconnecting battery terminals, observe all applicable Notes and torque specifications, as well as instructions on performing OBD program and electrical system function checks.

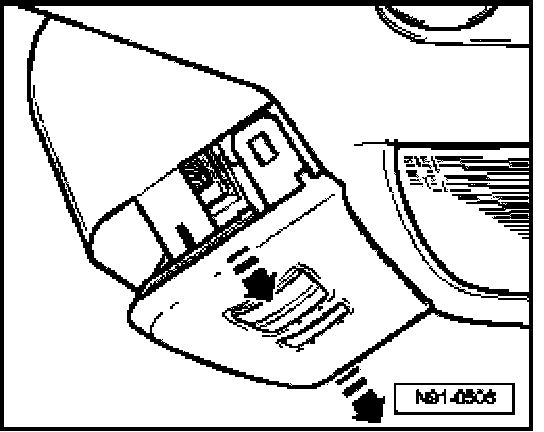

- Using appropriate screwdriver, carefully unclip control head from areas indicated with -arrows-







- Remove control head in direction of -arrows-.
- Disconnect electrical connection.

CAUTION: Telematic control head buttons cannot be removed, dismantled or serviced separately. Should malfunctions occur, replace complete control head.

Installing
Install in reverse order of removal.
- Check telematic system coding and recode if necessary.
