Lumbar Support, Removing and Installing

Lumbar Support, Removing And Installing

Removing
- Remove seat.
- Remove backrest.

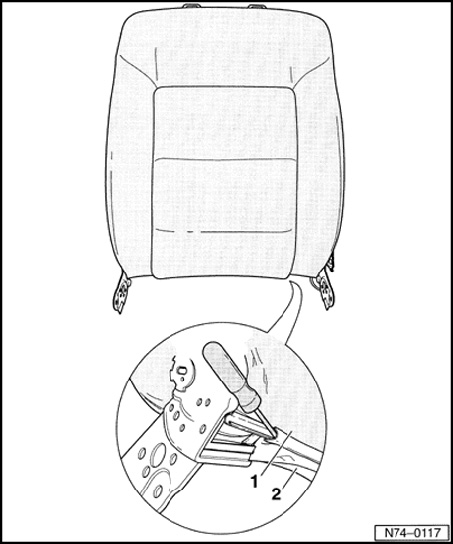

- Separate beading strip - 1 - for cover - 2 - using a screwdriver - arrows -.







- Loosen cover at rear - 1 - and front - 2 -.







- Disconnect harness connector - 1 - for backrest heater.

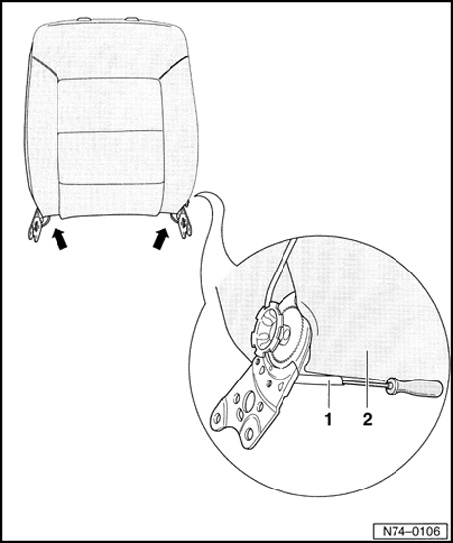

- Pull tension wire - 1 - out of seat frame - 2 -.







- Cut through three upholstery clips - 1 -.







- Pry off adjusting knob - 1 - and collar - 2 -.

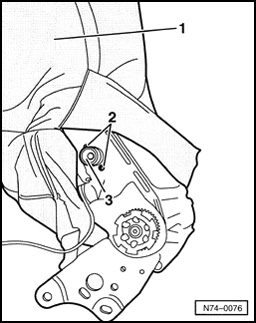

- Slide cover - 1 - up and unscrew bolts - 2 - for lumbar adjustment - 3 -.







- Unclip lumbar support - 1 - - arrows - and remove from backrest frame.

Installing
Installation is performed in the reverse order of removal.
