EVAP System, Connection Diagram

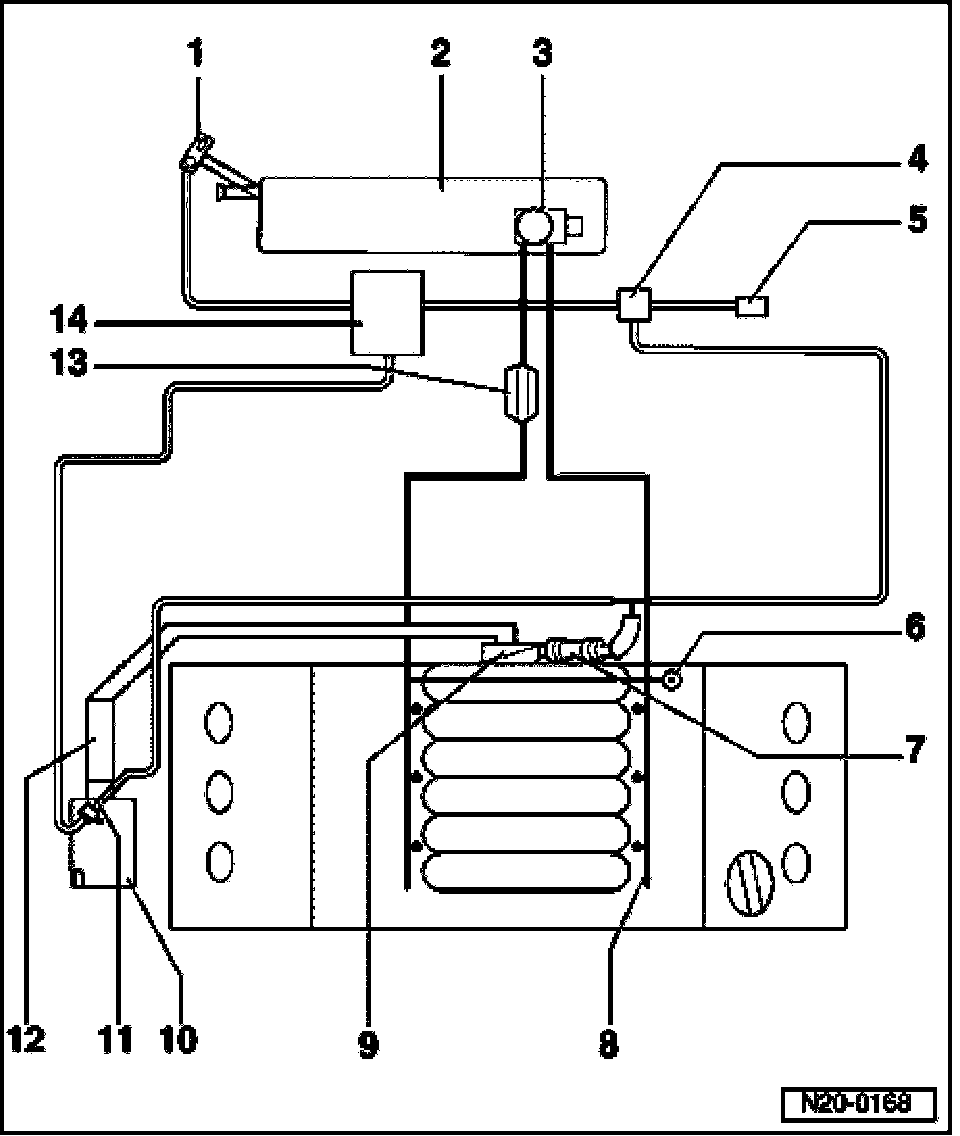

Overview Of EVAP Canister System







1. Tank lid unit
- with rubber cap
2. Fuel tank
3. Fuel Pump (FP) unit
- Removing and installing
4. Leak Detection Pump (LDP) -V144-
- Under wheel housing liner in rear left wheel housing
- checking
5. Air filter for diagnostic pump
6. Fuel pressure regulator
- checking
7. Suction jet pump
8. Fuel rail with fuel injectors
9. Throttle Valve Control Module -J338-
10. Air filter housing
11. Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
- Installation position: Arrow points in direction of flow
- checking
12. Mass Air Flow (MAP) Sensor -670-"
13. Fuel filter
- Installation position: Arrow points in direction of flow
14. EVAP canister
- In spare wheel well at vehicle floor
