ABS Mark 60, ABS, EDL, ASR and ESP, through Calendar Week 22.2008

ABS Mark 60, ABS, EDL, ASR and ESP, through Calendar Week 22.2008

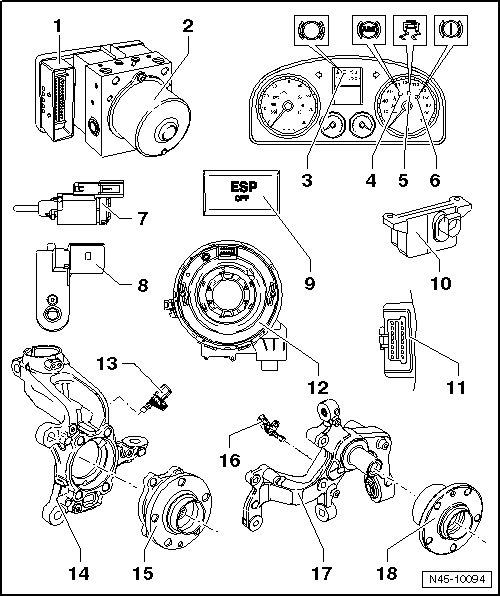

1 ABS Control Module (J104)

• Component location: At hydraulic unit on right side of engine compartment.

• Do not disconnect connector before successfully completing On Board Diagnostic (OBD). Switch ignition off before separating connector.

• Removing and installing, refer to => [ Brake Lines from Brake Master Cylinder, Connecting to Hydraulic Unit ] Brake Lines from Brake Master Cylinder, Connecting to Hydraulic Unit

2 ABS Hydraulic Unit (N55)

• Component location: in engine compartment, right

The hydraulic unit consists of the components:

• ABS hydraulic pump (V64)

• Brake pressure sensor 1 (G201)

• Valve block (contains the in/outlet valves)

• The ABS hydraulic pump (V64) and valve block must not be separated from one another

• Removing and installing, refer to => [ Brake Lines from Brake Master Cylinder, Connecting to Hydraulic Unit ] Brake Lines from Brake Master Cylinder, Connecting to Hydraulic Unit

3 Brake Pad Wear Indicator Lamp (K32)

• Component location: In the instrument cluster

• Function, refer to => [ Level Control System Indicator Lamps ] Level Control System Indicator Lamps

4 ABS Indictor Lamp (K47)

• Component location: In the instrument cluster

• Function, refer to => [ Level Control System Indicator Lamps ] Level Control System Indicator Lamps

5 ASR/ESP Indicator Lamp (K155)

• Only on vehicles with ABS/EDL/ASR/ESP

• Component location: In the instrument cluster

• Function, refer to => [ Level Control System Indicator Lamps ] Level Control System Indicator Lamps

6 Brake System Indicator Lamp (K118)

• Component location: In the instrument cluster

• Function, refer to => [ Level Control System Indicator Lamps ] Level Control System Indicator Lamps

7 Brake Lamp Switch (F) through CW 45/05

• Includes brake pedal switch (F47)

• Component location: on brake pedal

8 Brake Lamp Switch (F) from CW 45/05

• Includes brake pedal switch (F47)

• Component location: On brake master cylinder

• Removing and installing, refer to => [ Brake Lamp Switch, from 10.05.2005 ] Service and Repair

9 ASR/ESP Button (E256)

• Only on vehicles with ABS/EDL/ASR/ESP

• Component location: in center console

10 ESP Sensor Unit (G419)

• Only on vehicles with ABS/EDL/ASR/ESP

• Under the right front seat

• Combined transverse acceleration sensor (G200) , rotation rate sensor (G202) and longitudinal acceleration sensor (G251)

• Combined in one housing

• Removing and installing, refer to => [ ESP Sensor Unit ] Service and Repair

11 Data Link Connector (DLC)

• Component location: cover in driver footwell

12 Steering Angle Sensor (G85)

• Component location: On steering column between steering wheel and steering column switch

• Removing and installing, refer to => [ Steering Angle Sensor ] Service and Repair

13 Right Front ABS Wheel Speed Sensor (G45) / Left Front ABS Wheel Speed Sensor (G47)

• Removing and installing, refer to => [ ABS Components, Front Axle ] ABS Components, Front Axle

14 Wheel Bearing Housing

15 Wheel Bearing/Hub Unit

• The ABS sensor ring is installed in the wheel bearing

16 Right Rear ABS Wheel Speed Sensor (G44) / Left Rear ABS Wheel Speed Sensor (G46)

Front wheel drive shown

• Removing and installing (Front Wheel Drive), refer to => [ ABS Components, Rear Axle FWD ] ABS Components, Rear Axle FWD

17 Wheel Bearing Housing

Front wheel drive shown

18 Wheel Bearing/Hub Unit

Front wheel drive shown

• The ABS sensor ring is installed in the wheel bearing
