Front Passenger Airbag Deactivation Key Switch (E224)

Front Passenger Airbag Deactivation Key Switch (E224)


Observe safety precautions when working on the airbag.

Removal

- Turn off the ignition and all electrical consumers.

- Remove the glove compartment.

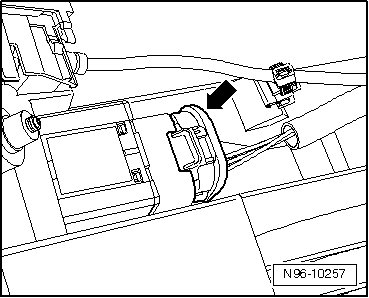

- Disconnect electrical connection - arrow -.

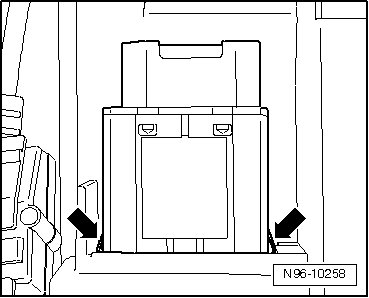

- Disengage retaining tabs - arrows - and remove key switch.






Installation

Installation is performed in the reverse order of removal.
