Transmission to Engine Tightening Specifications

Transmission to Engine Tightening Specifications

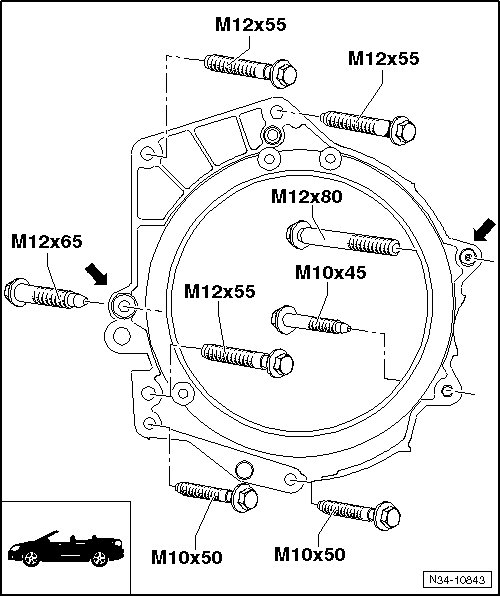

For the following:

Eos with a 3.2 L engine






M12 Bolts - 80 Nm

• If the insert tool 18 mm (T10179) is used: 65 Nm.

M10 Bolts - 40 Nm

Arrows - Alignment Sleeves






- Replace all the bolts for the transmission mount.

- First, install all the new bolts by hand.

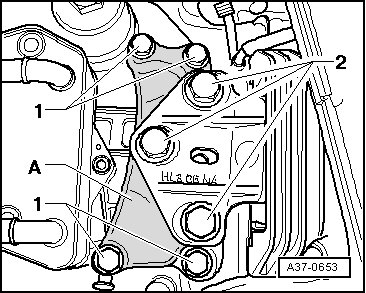

- Then tighten the transmission mount bracket - A - to transmission bolts - 1 - to 40 Nm + 90° (1/4) additional turn.






- When tightening the bolts - 2 -, the bracket can be pried into position with screwdriver. Tightening specification for the bolts - 2 -: 60 Nm + 90° (1/4) additional turn.

Starter to transmission Starter, Removing and Installing.

Subframe screws must be replaced.

Subframe to body
