Luggage Compartment Access/Start Authorization Antenna

Access/Start Authorization Antennas and Sensors


Luggage Compartment Access/Start Authorization Antenna

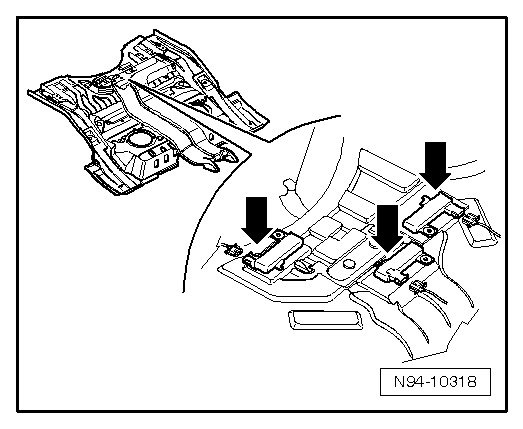

Depending on equipment, Luggage Compartment Access/Start Authorization Antenna (R137) - arrows - is located at three different positions in luggage compartment.





• No coding, basic setting or adaptation is necessary if Luggage Compartment Access/Start Authorization Antenna (R137) is replaced.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove storage area floor of luggage compartment from vehicle.

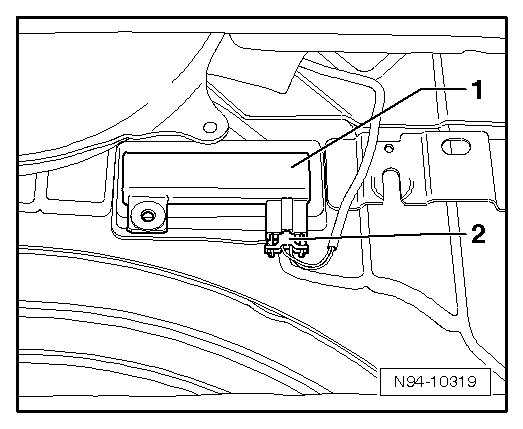

- Disconnect connector - 2 -.





- Loosen the glued Luggage Compartment Access/Start Authorization Antenna (R137) - 1 - from luggage compartment floor.

Installing

Install in reverse order of removal.
