Striker Pin With Closing Assist

Rear Lid


Striker Pin with Closing Assist

• The same removal and installation instructions apply for striker pins without closing assist.

Removing

- Remove the lock carrier cover.

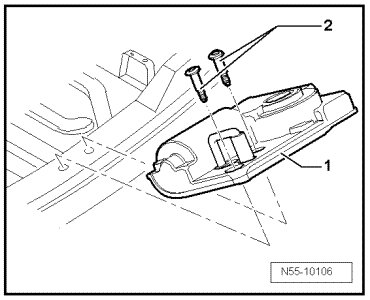

- Remove the bolts - 2 - and remove striker pin - 1 -.

Installation

- Install striker pin - 1 -.





Further installation is in reverse order of removal.

- Tightening specifications: Bolts - 2 - 25 Nm

- Striker pin, adjusting, refer to --> [ Striker Pin, Adjusting ] Rear Lid
