The panel must be installed in the neutral position (panel closed).

Neutral position:

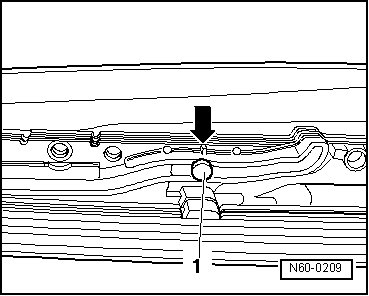

Guide pin must align with marking - arrow - on left and right guide rails.





If this is not the case, adjust parallel movement. Refer to --> [ Solar Panel, Adjusting Parallel Movement ] Sunroof with Solar Panel Overview

- Insert the sunroof panel from above and install the rail/panel mounting bolts - arrows -.





- Lightly tighten the bolts.

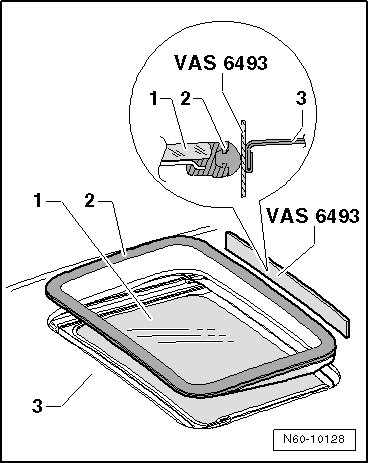

- Insert the adjusting strip (VAS 6493) between the roof - 3 - and the sunroof panel seal - 2 -.





- Tighten the screws to 4.5 Nm.

• Tighten mounting bolts to 4.5 Nm after panel height adjustment.
