Adaptive Cruise Control Calibration without Vehicle Alignment

Adaptive Cruise Control Calibration without Vehicle Alignment

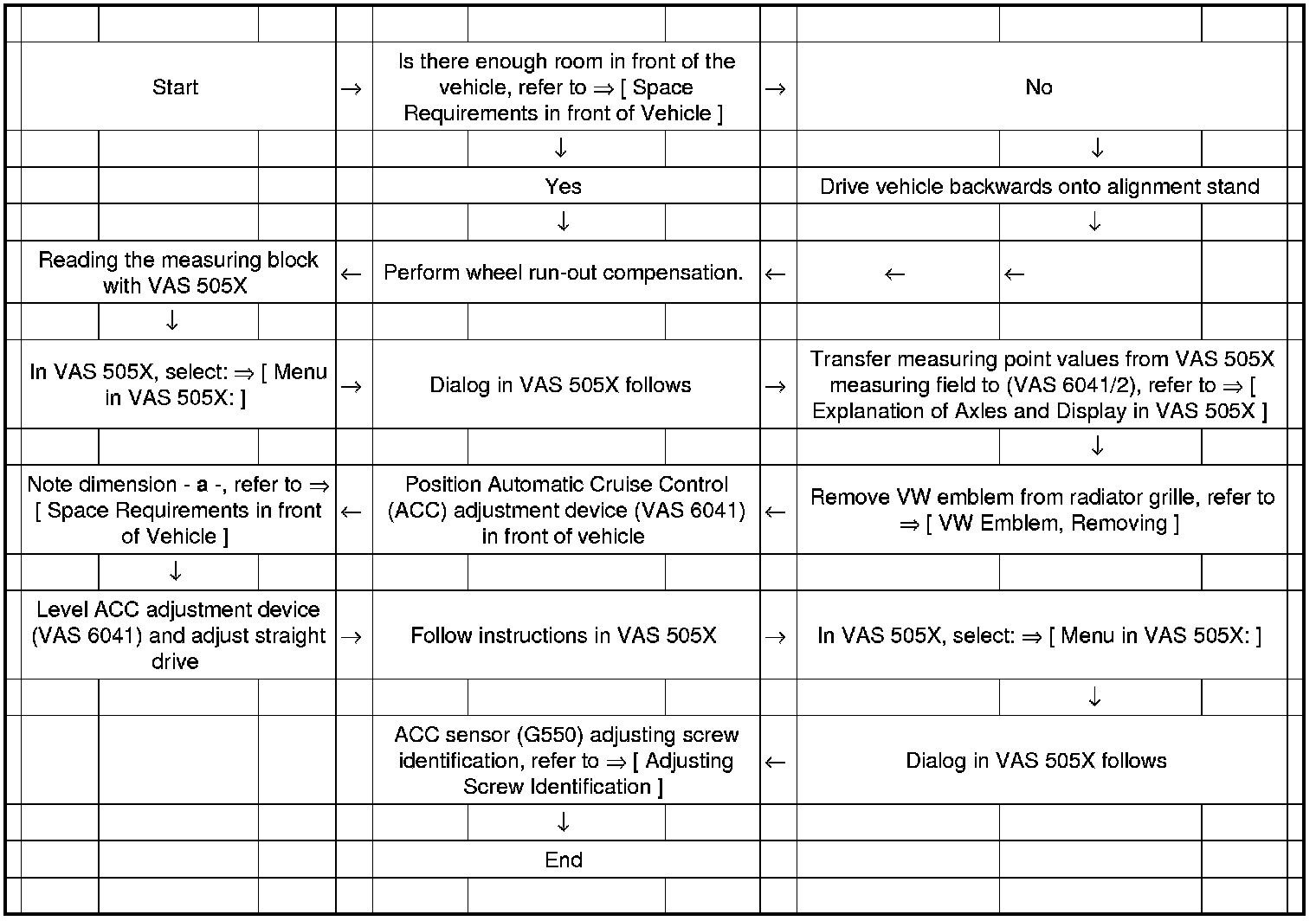

Observe the following work sequence!

- Observe the notes in your alignment unit and specifications in general information. Refer to --> [ Adaptive Cruise Control Calibration ] Adaptive Cruise Control Calibration.

Measuring Procedure





Space Requirements in front of Vehicle





Distance - a - = 1145 mm

Distance - a - is distance between ACC sensor (G550) mirror and ACC adjustment tool (VAS 6041) measuring field.

• If necessary, use precision spoiler adapter (VAG 1813/12) to equalize height between ACC adjustment tool (VAS 6041) and vehicle alignment platform.

VW Emblem, Removing





- Guide a screwdriver through opening - arrow A - and press tab - arrow B - downward.

- Remove VW emblem.

ACC Sensor (G550) Adjusting Screw Identification





1. Horizontal or measuring block 6-2 adjusting screw, refer to --> [ Adjusting Screw Identification ]

2. Vertical or measuring block 6-3 adjusting screw, refer to --> [ Adjusting Screw Identification ]

3. Must not be turned - functions only as a pivot point.

Explanation of Axles and Display in VAS 505X





Y Measuring block 6-2
X Measuring block 6-3

Example

Value 0.1 corresponds to 4 mm on (VAS 6041/2)

With a measuring block 6-2, display in VAS 505X shows a value of 0.6 and measuring block 6-3 a value of -1.0.

These values lead to a measuring point - arrow - that consists of the following values:

- a - = 24 mm

- b - = 40 mm

Menu in VAS 505X:

- Press the following buttons on the screen one after the other:

• Suspension

• Distance Control

• 01 - On Board Diagnostic (OBD) Capable Systems

• Function

• Adaptation to adjustment on alignment stand
