Level Control System Control Head and Transfer Case Operating Unit

Center Console Lamps and Switches


Level Control System Control Head and Transfer Case Operating Unit

The Level Control System Control Head (E281) is located in the right of the center console behind the switch cover.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove gear selector cover.

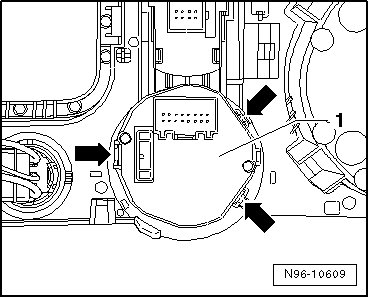

- Press the three retaining tabs - arrows - together and remove Level Control System Control Head (E281) from switch cover.





Installing

Install in reverse order of removal.
