Garage Door Opener Control Head

CAUTION!
When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool (plastic wedge, screwdriver) will be positioned using commercially available adhesive tape.

The control head consists of the following components:

• Garage Door Opener Button 1 (E392)

• Garage Door Opener Button 2 (E393)

• Garage Door Opener Button 3 (E394)

• Garage Door Opener Indicator Lamp (K179)

• Push Button Illumination (L76)

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

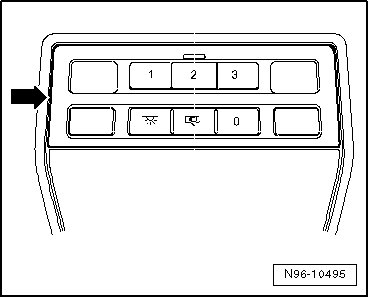

- Carefully pry control head out of console in molded headliner - arrow -.





- Disengage retaining tabs - arrows - and remove control head from frame.





Installing

Install in reverse order of removal.
