System Specifications

Fastener Tightening Specifications





• 1 Replace seal

• 2 Tighten in 2 stages

• 3 Always replace

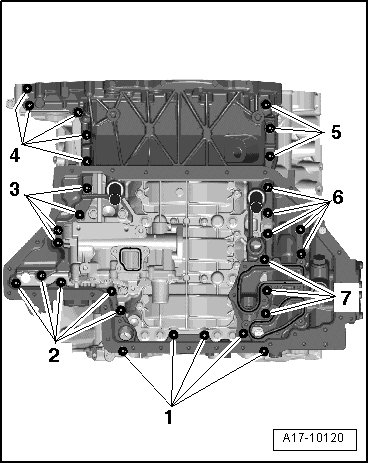

Upper Oil Pan Bolt Tightening Sequence and Specification





- Tighten the bolts - 1 through 7 - diagonally in sequence to 5 Nm.

- Tighten the bolts - 1 through 7 - diagonally in sequence to to 14 Nm.
