Battery Static Voltage, Vehicles in Storage, Checking

Battery Static Voltage, Vehicles in Storage, Checking

CAUTION!
Risk of injury. Observe warning notes and safety precautions. Refer to --> [ Battery Safety Precautions ] Battery Safety Precautions!

• The static voltage may only be measured on vehicles in storage within the scope of the prescribed maintenance and care work as an assessment criterion for the battery condition.

• The static voltage test serves to determine whether it is necessary to charge the battery on vehicles in storage --> Maintenance tables"Service for vehicles in storage"

Special tools, testers and auxiliary items required

• Hand-Held Multimeter (V.A.G 1526 B)

Test Conditions

The battery may be either charged or discharged for at least 2 days.

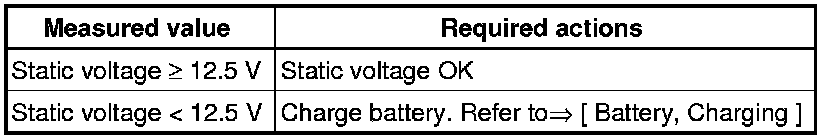

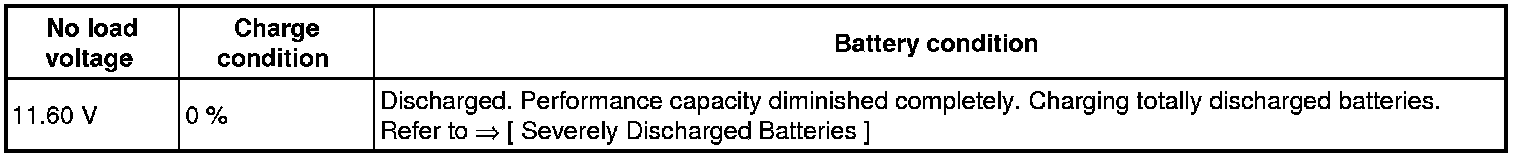

- Measure no load voltage of battery with the Hand-Held Multimeter (V.A.G 1526 B).
