Transmission Identification

Transmission Identification

The Touareg is equipped with the 6 speed automatic transmission 09D All Wheel Drive (AWD). Allocation, refer to --> [ Code and Transmission Allocation, ] Code and Transmission Allocation.

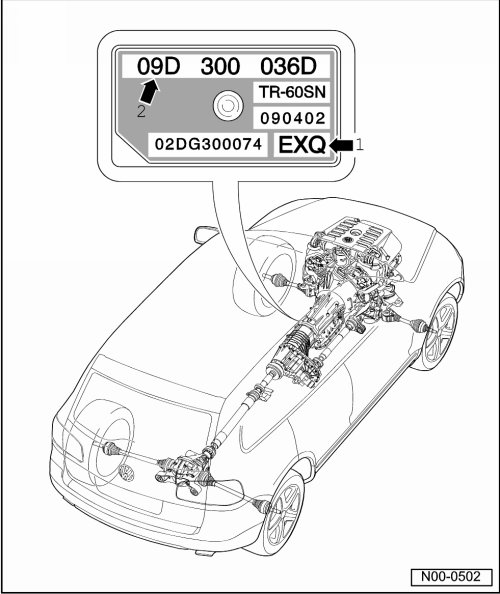

The transmission code letters are shown on the type plate on the lower left of the transmission.

Example





1 Code

2 6 speed automatic transmission 09D AWD

The transmission code is also indicated on the vehicle data stickers.
