Breather Line

Breather Line

Removing

- Remove the rear right wheel housing liner.

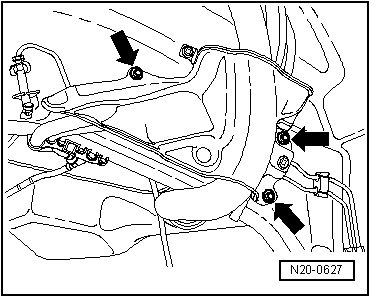

- Remove the cover plate - arrows -.





- Unclip the breather line on the longitudinal member and under the fuel filler tube.





- Remove the breather line from the breather connection on the rear final drive.

Installing

Install in reverse sequence; note the following points:

- The connectors of both breather lines must lock with each other.

- Route the breather line so that it is free of kinks.

- Clip the breather line under the fuel filler tube.

- Make sure the breather line is securely fastened.

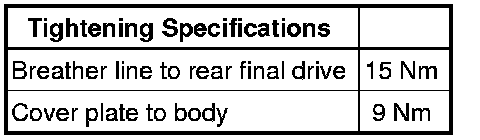

- If the breather line - B - was removed or loosened from the rear final drive (--> upper illustration), the be sure to note the tightening specification.

- Install the cover plate - arrows -; note the tightening specification.









- Install the rear right wheel housing liner.
