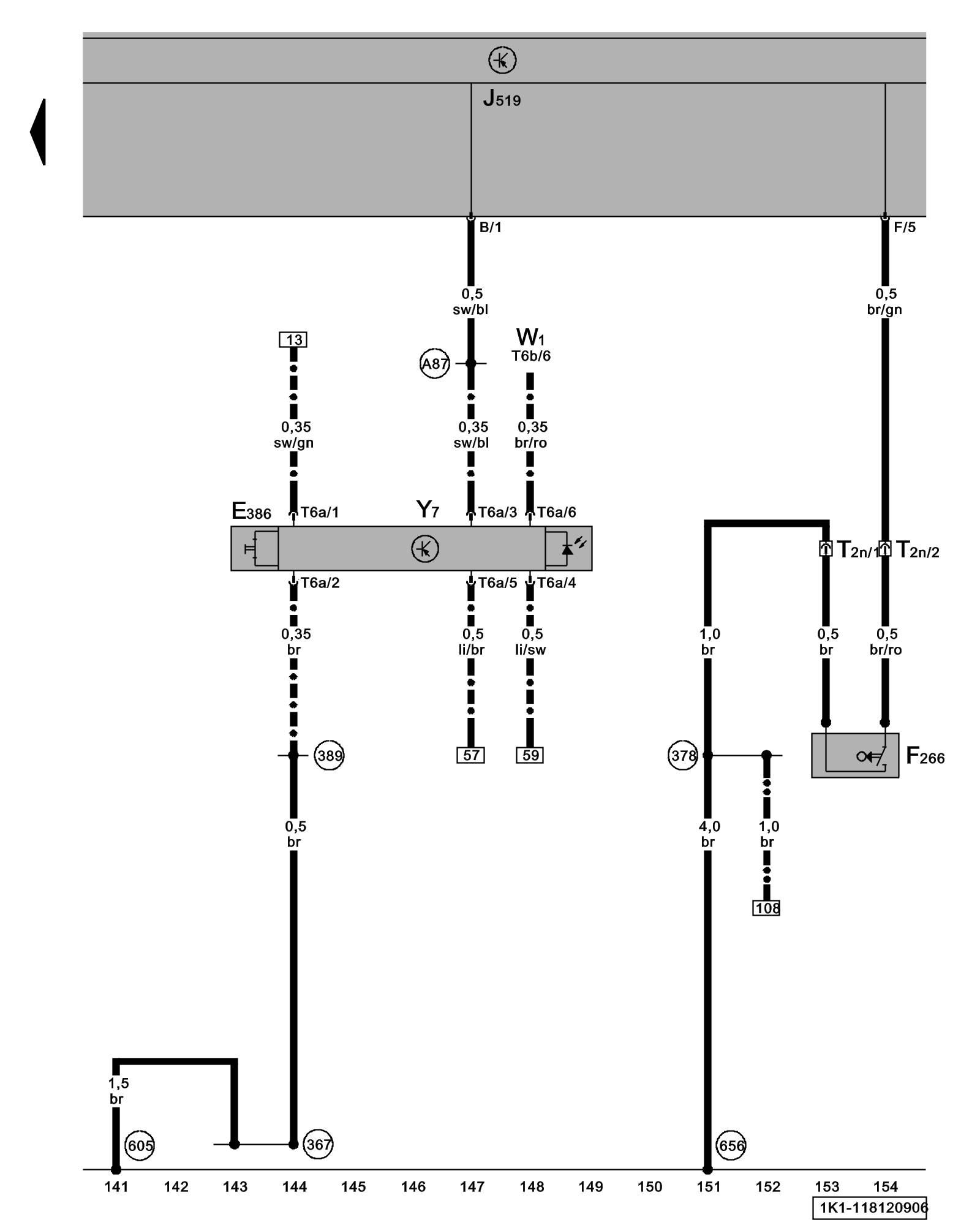

Diagram 118/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Automatic Day/Night Interior Mirror, Front Hood Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E386 - Automatic Day/Night Interior Mirror Switch

F266 - Front hood switch in front hood lock Locations

J519 - Vehicle Electrical System Control Module

T2n - Double Connector, near right headlamp

T6a - 6-Pin Connector

T6b - 6-Pin Connector

W1 - Front Interior Light

Y7 - Automatic Day/Night Interior Mirror

(367) - Ground Connection 2 (in main wiring harness)

(378) - Ground Connection 13 (in main wiring harness)

(389) - Ground Connection 24 (in main wiring harness)

(605) - Ground Connection (on upper steering column) Overview of Ground Connections In Interior

(656) - Ground Connection (on right headlamp) Overview of Ground Connections In Engine Compartment

(A87) - Backup Lamp Connection (in instrument panel wiring harness)

_ . _ . _ - Only models with automatic day/night interior/outside mirror

_ . . _ - Only models with anti-theft alarm system
