Diagram 190/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

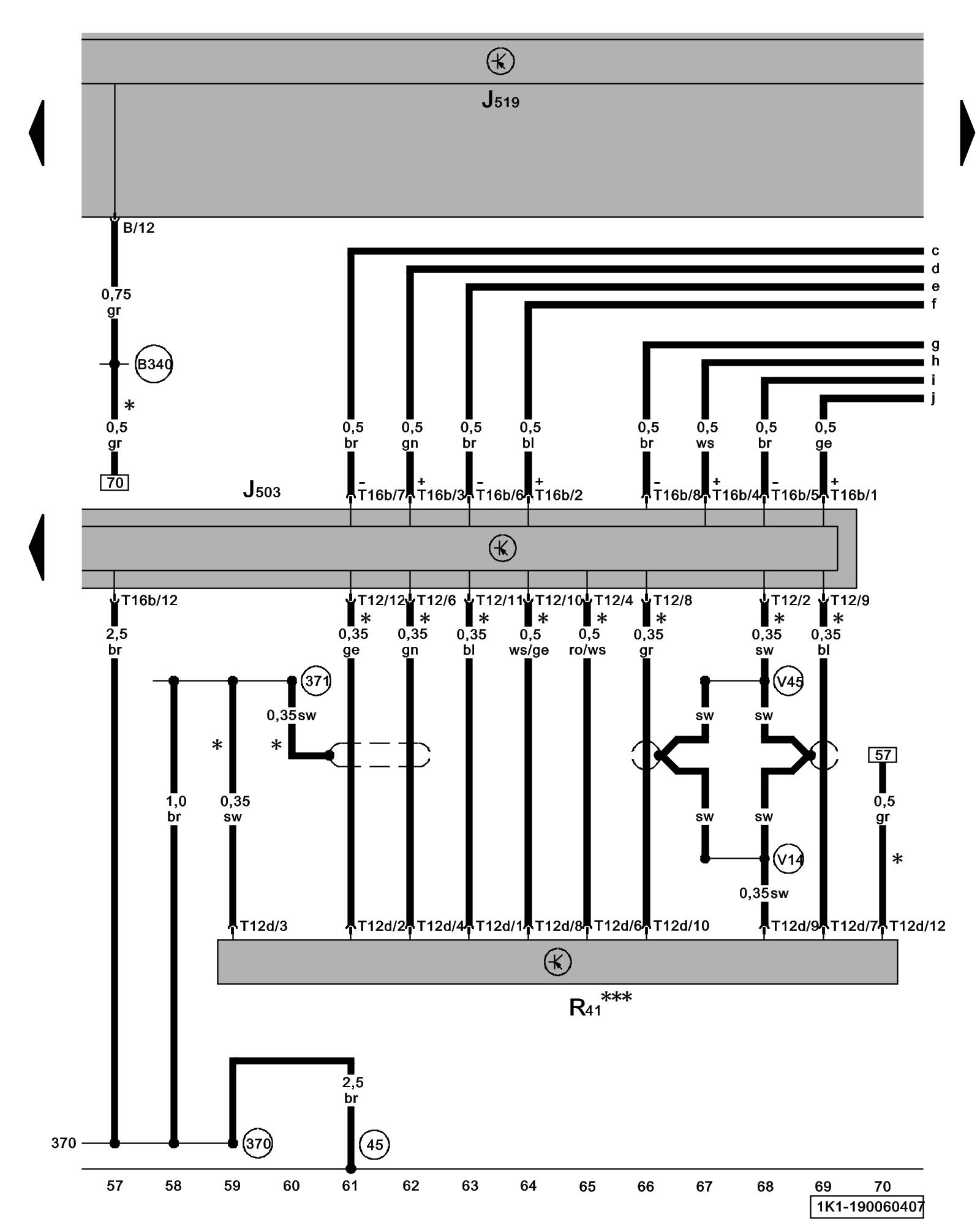

Radio/Navigation Display Control Module, CD Changer





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Radio / Navigation And Antenna Systems Overview

J519 - Vehicle Electrical System Control Module

R41 - CD Changer Radio / Navigation And Antenna Systems Overview

T12 - 12-Pin Connector

T12d - 12-Pin Connector

T16b - 16-Pin Connector

T20c - 20-Pin Connector

(45) - Ground Connection (behind instrument panel, center) Overview of Ground Connections In Interior

(370) - Ground Connection 5 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)

(B340) - Connection 1 (58d) (in main wiring harness)

(V14) - Connection (shielding) (in CD-changer wiring harness)

(V45) - Connection 2 (shielding)(in CD changer wiring harness)

* - Only models with CD changer/ CD changer preparation

*** - Components not available on system preparation

Previous Diagram 190/5 (Tracks 43-56)

Next Diagram 190/7 (Tracks 71-84)
