Valve Body

Valve Body

Special tools, testers and auxiliary items required

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (V.A.G 1756)

Removing

- Turn off the ignition and disconnect the battery ground cable.

- Remove the transmission fluid pan. Refer to => [ Transmission Fluid Pan ] Service and Repair.

- Remove the transmission fluid filter. Refer to => [ Transmission Fluid Filter ] Service and Repair.

- Make a sketch, identical to the illustration, of all the sensors and solenoid valves and their connectors.

- Mark the solenoid valve and/or sensor and its connector before disconnecting them.

CAUTION!
It is absolutely required to draw or take pictures and to make identifying marks so that the connectors at the solenoid valves cannot be interchanged unintentionally when reinstalling the sensors and valve body.

Confusing the connectors could cause damage to the transmission.

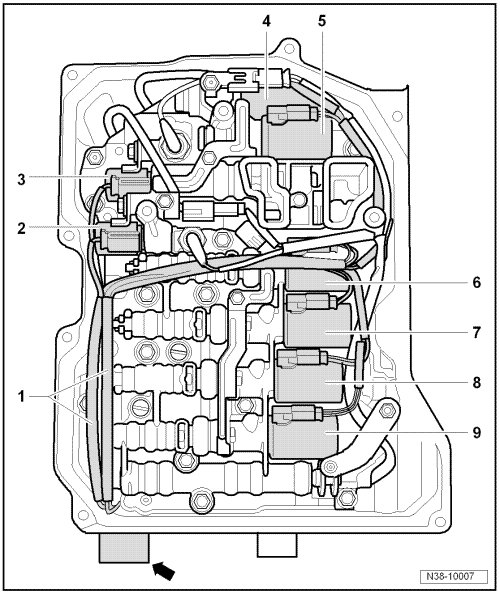

- Carefully pry out the connector tabs on the solenoid valves - 2 through 9 - using a small screwdriver and then disconnect the connectors.

- The wiring harness or the valve body with the solenoid valves must be replaced if the one of the connectors gets damaged.

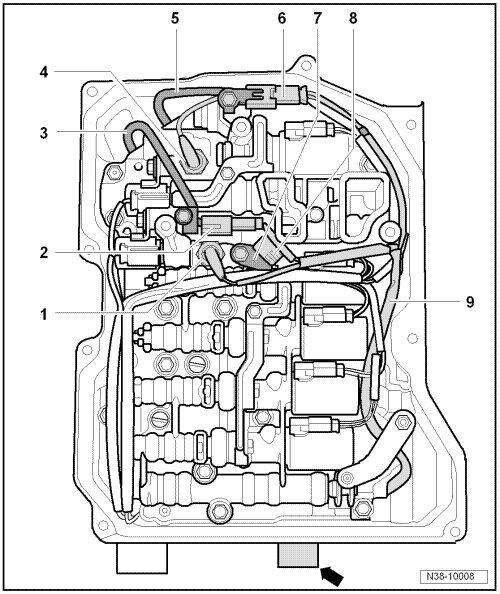

- Disconnect the connectors from automatic transmission hydraulic pressure sensor 1 (G193) - 1 - and the automatic transmission hydraulic pressure sensor 2 (G194) - 4 -, if equipped.





- Disconnect the connectors - 2 and 5 -.

- Remove the bolts - 3 -.

- Replace the wiring harness or the transmission input speed sensor (G182) or the transmission output speed sensor (G195) if one of the connectors gets damaged.

- Remove the bolt - 6 -.

- Pay attention when attaching the bracket to the transmission fluid temperature sensor (G93) - 7 -.

- Carefully remove the transmission fluid temperature sensor - 7 - together with the bracket from the valve body.

- Disengage the wiring harness on the bracket - 8 -.

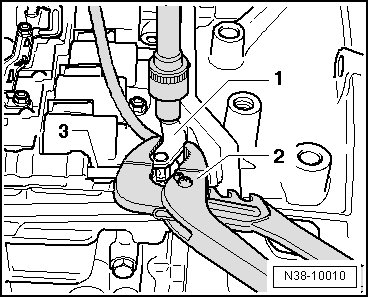

- Remove the shift lever - 1 - from the selector shaft.





- When doing this, hold the shift lever - 1 - secure with pliers - 2 - so that it does not turn when removing the multifunction transmission range switch (F125).

- Make sure the slide - 3 - on the valve body in which the shift lever engages is not damaged.

The valve is very sensitive. Even minor damage leads to malfunction.

- Always slide the valve into the body, secure it against falling out and never exchange it.

The bolts have different lengths and must be replaced.

Only the indicated bolts - arrows - may be loosened.





When loosening the other bolts, the function of the valve body can be influenced or the valve body splits up.

- Loosen the valve body bolts - arrows -, - arrows A - and - arrows B - diagonally and then remove the valve body.

- Remove the brackets - 1 and 2 -.

- 3 - Valve body description, for example, A2

- When removing the valve body, it may be necessary to protect the piston - 2 - against falling out or remove it with the spring.





Installing

- Observe the correct routing of the wires so that they do not get pinched when installing the valve body.

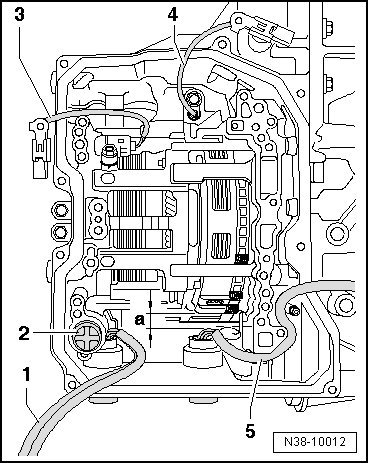

- Route the wiring harness - 5 - into the transmission as illustrated.





The distance - a - must be maintained so that the wiring harness - 5 - does not touch the planetary gear and get damaged when the vehicle is being driven.

- Place the wiring harnesses - 1, 3, 4 and 5 - over the edge of the transmission, as illustrated.

- Attach the wiring harnesses to the transmission with tape.

- Install the piston - 2 - in the transmission as illustrated.

- If the piston - 2 - was removed, then clean it and the spring - item 29 -=> [ Spring ] Valve Body Overview and install them.

- Lubricate the piston - 2 - and the mount with ATF.

- Insert the spring in the piston.

- Place the piston with the spring into the mount in the transmission.

- To prevent the piston from falling down, push it into the transmission until the valve body is mounted.

- Carefully install the valve body without pushing on it.

Be careful not to pinch the wiring harnesses - 1, 3, 4 and 5 - with the valve body.





- Replace the valve body bolts - arrows -.





- Pay attention to the different bolt lengths:





- Install the wiring harness brackets - 1 and 2 - with new bolts hand tight.

- Tighten the remaining valve body bolts - arrows -, - arrows A - and - arrows B - hand tight.

- If the wires - 3, 5 and 9 - are too short to be able to attach to the sensors or to the valve body, then they were routed incorrectly or they have been pinched by the valve body. The valve body must be removed again and the wires must be routed correctly.





Be careful not to pinch the wires - 3, 5 and 9 - with the valve body.

- Tighten the new bolts - arrows -, - arrows A - and - arrows B - starting from the inside and working out. Tightening specifications, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.





- Engage the wiring harness - 3 - in the bracket - 7 - - arrow B -.





- Attach the shift lever - 2 - to the selector shaft - 6 -.

When doing this, make sure the pin on the selector lever - 2 - engages into the slider - 1 - - arrow A -. Position the slider if necessary.

- Install the washer - 5 - and nut - 4 - on the selector shaft - 6 -.

The collar on the nut must always face the washer and fit into the washer when the nut is tightened.

The wiring harness must be routed underneath the selector shaft lever.

- Tighten the nut on the shift lever - 1 -. Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.





- When doing this, hold the shift lever - 1 - secure with pliers - 2 - so that it does not turn when removing the multifunction transmission range switch.

- Make sure the slide - 3 - on the valve body in which the shift lever engages is not damaged.

- Connect the connectors to the solenoid valves - 2 through 9 - according to the marks made earlier.





CAUTION!
Confusing the connectors could cause damage to the transmission.

The wiring harness or the valve body with the solenoid valves must be replaced if the one of the connectors gets damaged.

- Route the wiring harness - 1 - as illustrated.

- Connect the connectors - 2 and 5 -.





Counterparts of the connectors must have the same identification as the respective connectors.

- Position the bracket on the transmission fluid temperature sensor - 7 -.

- Install the transmission fluid temperature sensor and the bracket into the valve body.

- Tighten the bolt - 6 -. Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

- Connect the connectors to the automatic transmission hydraulic pressure sensor 1 - 1 - and the automatic transmission hydraulic pressure sensor 2 - 4 -, if equipped.

- Tighten the bolts - 3 - on the bracket for the connectors - 2 and 5 -. Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.





- If the wires are too shore to be attached, then they were routed incorrectly or the valve body is pinching them. The valve body must be removed again and wires must be routed correctly.

- Engage the wiring harness into the bracket - 8 - and route it as illustrated.

- Install the filter. Refer to => [ Transmission Fluid Filter ] Service and Repair.

- Install the transmission pan. Refer to => [ Transmission Fluid Pan ] Service and Repair.

- Connect the battery ground cable.

- Fill the ATF and check the level. Refer to => [ ATF Level, Checking and Filling ] Testing and Inspection.

- Connect (VAS 5051) and move through the selections until "Functions-/component selections" is displayed.

- Press "Drive (Repair Groups 01;10 through 26; 28 through 39)".

- After that "6-speed automatic transmission 09G".

- Press "01 - OBD".

- Press "Functions".

- Press "basic setting".
