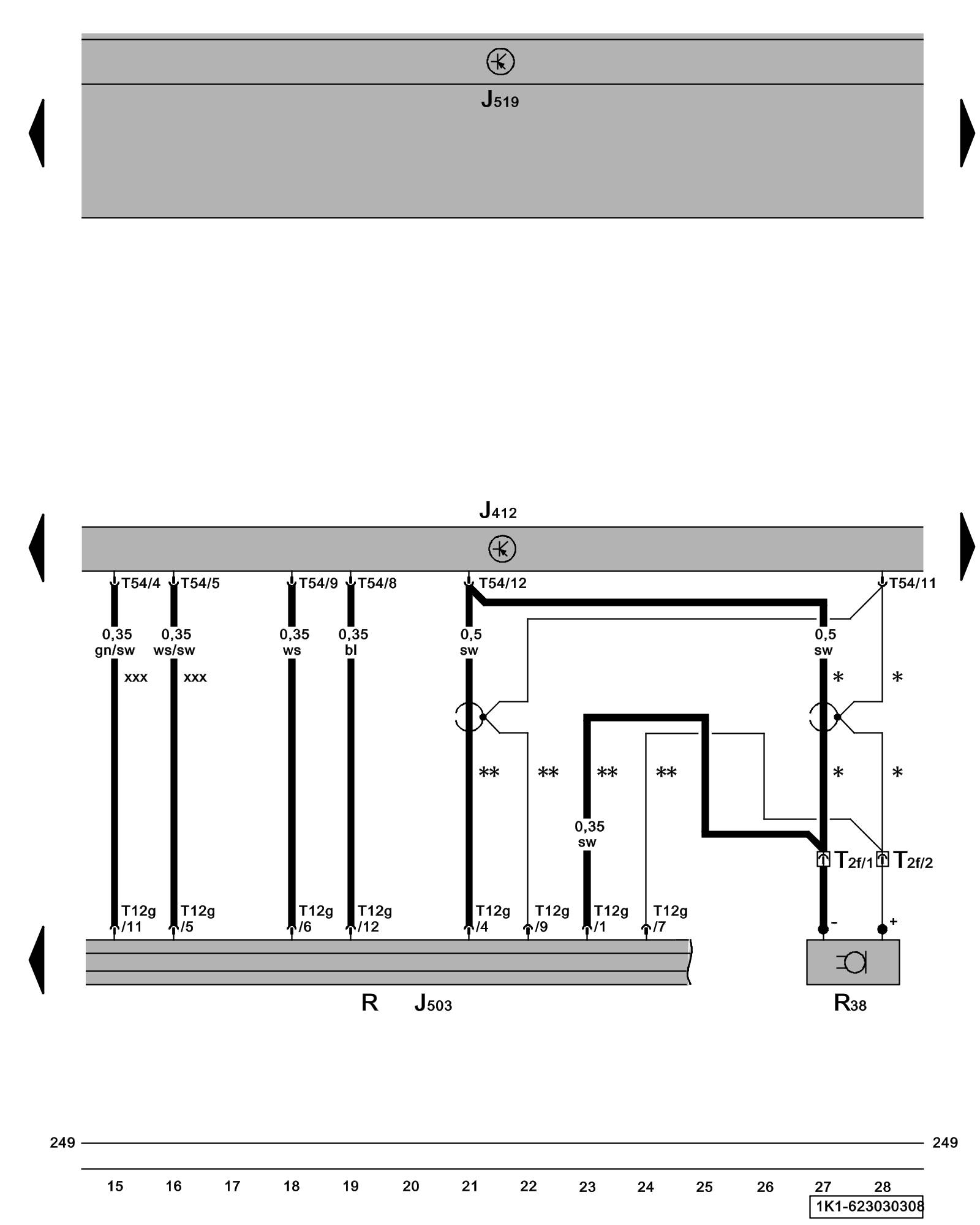

Diagram 623/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Operating Electronics and Telephone Control Module, Radio, Radio/Navigation Display Control Module, Telephone Microphone





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J412 - Operating Electronics and Telephone Control Module, in front right footwell Radio / Navigation And Antenna Systems Overview

J503 - Radio/Navigation Display Control Module Radio / Navigation And Antenna Systems Overview

J519 - Vehicle Electrical System Control Module

R - Radio

R38 - Telephone Microphone Radio / Navigation And Antenna Systems Overview

T2f - Double Connector, near front interior light

T12g - 12-Pin Connector

T54 - 54-Pin Connector

* - Not for models with radio/navigation system for Japan, China

** - Only models with radio/navigation system for Japan, China

xxx - From May 2008

Previous Diagram 623/2 (Tracks 1-14)

Next Diagram 623/4 (Tracks 29-42)
