Telephone Systems Overview

Telephone Systems

• The telephone system and telephone preparation primarily differ in that the telephone system has a factory-installed cell phone. Therefore, the following overview only illustrates the complete telephone system.

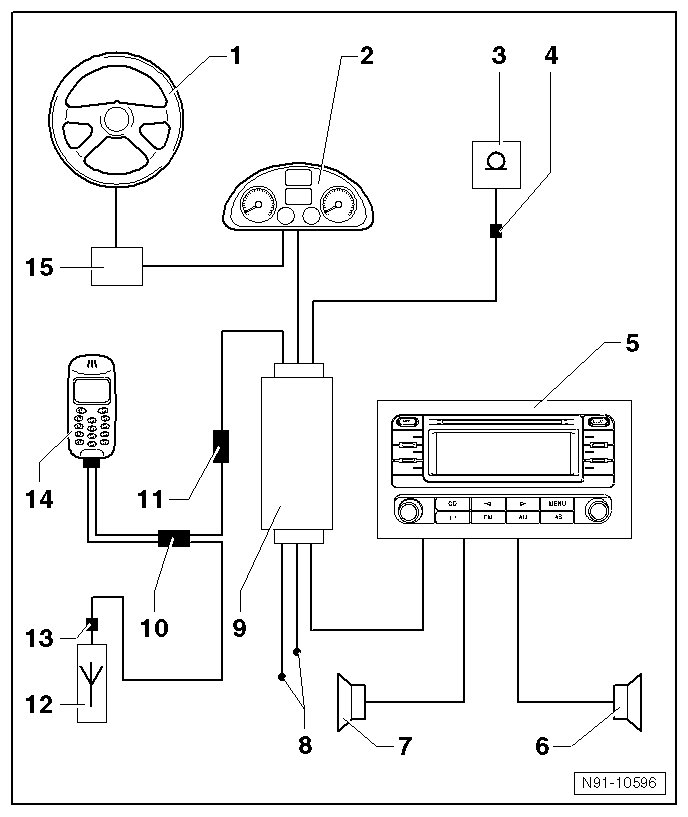

1 - Multifunction Steering Wheel

• Optional

• Additional information, refer to => [ Multifunction Steering Wheel ] Description and Operation

2 - Instrument Cluster

3 - Microphone (R38)

• For hands-free operation of telephone system

• Installed in front interior light

• Removing and Installing, refer to => [ Telephone Microphone ] Communication

4 - Microphone Connector

• In front light installation frame

5 - Radio (R)

Or radio/navigation display control module (J503 )

6 - Right Speakers

7 - Left Speakers

8 - Telephone Operating Electronics Control Module

9 - Operating Electronics and Telephone Control Module (J412)

• Installed below front right seat

• Removing and Installing, refer to => [ Telephone Mount, Rabbit Sedan from 06.06 ] Communication

• Removing and Installing, refer to => [ Telephone Operating Electronics Control Module, Rabbit Sedan and Golf Plus from 06.06 ] Communication

10 - Connector to Telephone Bracket

• Installed in telephone bracket wiring harness behind instrument panel

11 - Connector to Operating Electronics Control Module

12 - Telephone Antenna (R51)

• On rear of roof

• Additional information, refer to => [ Antenna ] Antenna

13 - Antenna Wiring Connector

• Antenna telephone connector

• Below rear headliner

14 - Cellular Telephone (R54)

• Telephone bracket Removing and Installing, refer to => [ Telephone Mount, Golf Plus from 06.06 ] Communication

• Telephone bracket Removing and Installing, refer to => [ Telephone Mount, Golf Plus through 05.06 ] Communication

15 - Steering Column Electronic Systems Control Module (J527)
