Multimedia Display Unit

Radio, Multimedia, Navigation

Multimedia Display Unit

• Hook (VAS 3370)

Removing

Before starting repair work, perform the following:

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Fold monitor out of roof console.

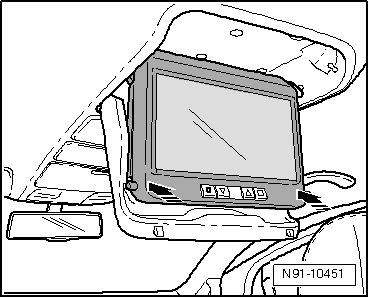

- Guide hook (VAS 3370) between monitor and cover in roof console and move it downward in - direction of arrow - until it contacts plastic monitor pins.

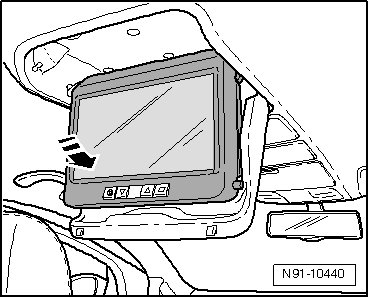

- Carefully pull monitor in - direction of arrow A - with hook (VAS 3370) until plastic pins disengage.

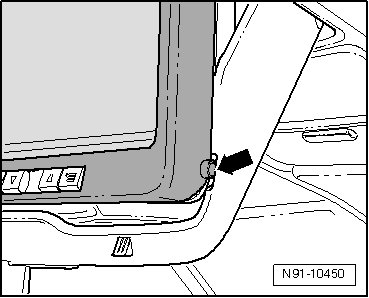

Monitor with plastic pins disengaged looks like this - arrow -:





- Repeat procedure for plastic pins on other side of monitor.

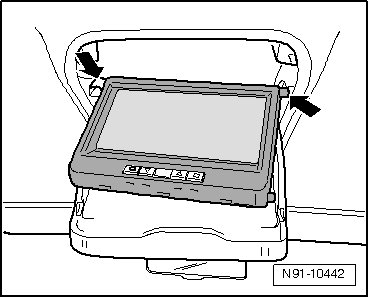

- Position monitor diagonally so guide pins - arrows - can be guided out of tracks.

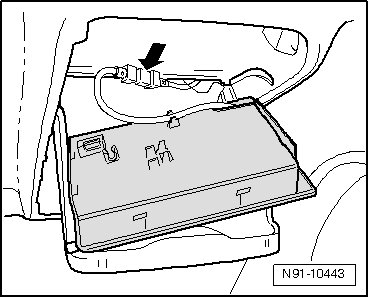

- Pull monitor out as far as wiring connection allows. Now you can see the connector behind the monitor - arrow -.





- Press on connector locking mechanism - arrow - and remove.





Installing

- Guide monitor into mount in roof console.

- Position monitor diagonally so that guide pins - arrows - can be guided into tracks in monitor mount.





- Slide monitor into tracks to upper stop.

- Connect connectors.

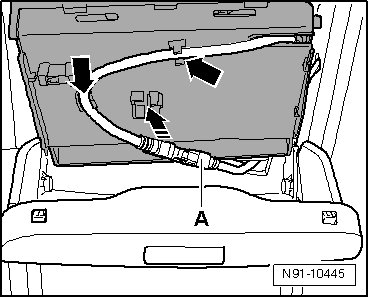

- Secure wiring harness on monitor as shown in illustration - arrows - and clip connector - A - into mount on monitor - arrow -.





- Bring monitor into position so that lower plastic pins - arrow - at left and right of monitor rest in front of catches in cover.





- Now press evenly on both sides of monitor - arrows - until plastic pins engage audibly in catches.





• Do not press on display because it can be damaged!

- Make sure the monitor opens and closes easily.

- Finally, check multimedia system for functionality.
