Diagram 118/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

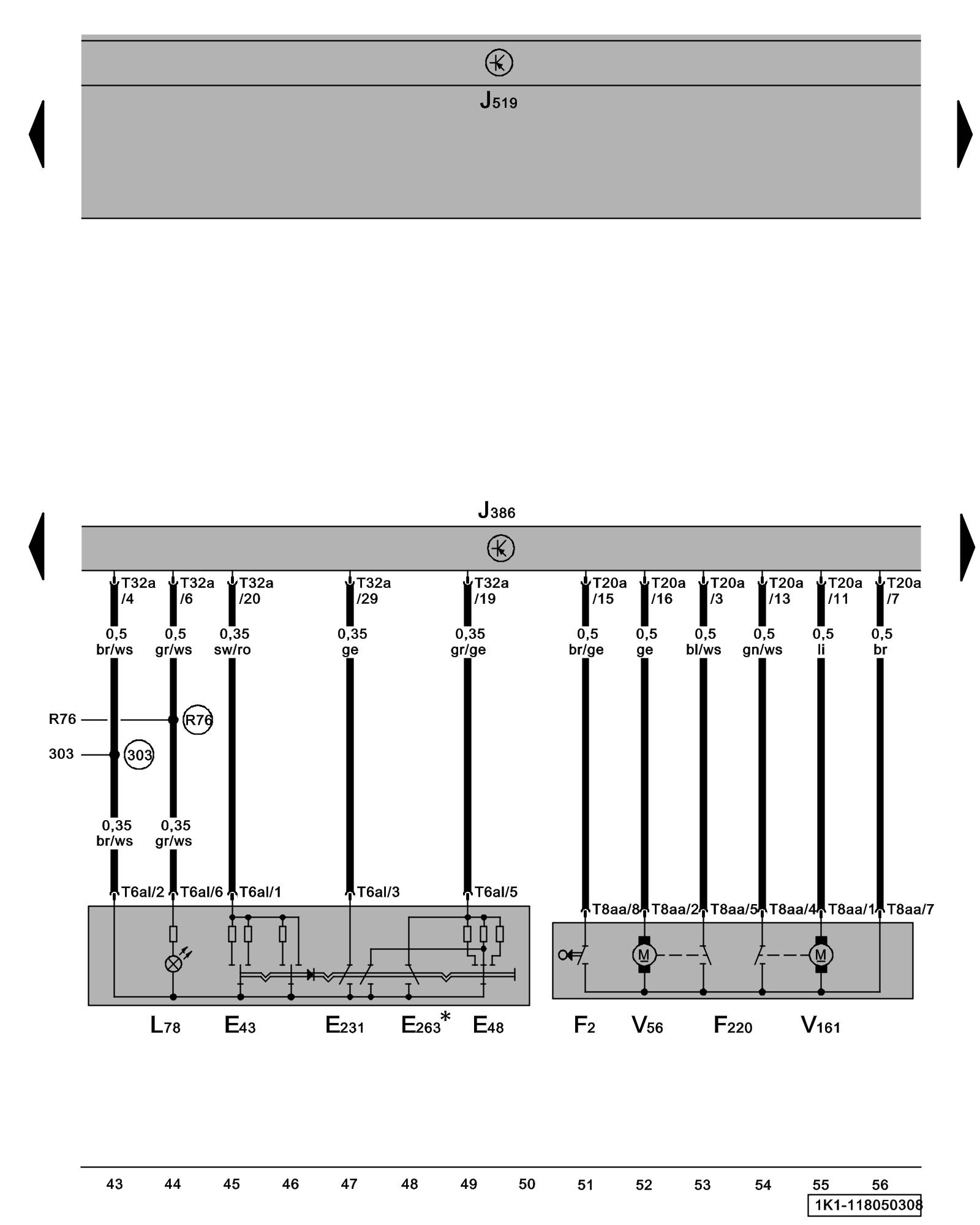

Driver's Door Control Module, Mirror Adjustment/Fold-in Switch, Outside Mirror Heating Switch, Driver's Door Central Locking Lock Unit





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E43 - Mirror Adjustment Switch

E48 - Mirror Selector Switch

E231 - Outside Mirror Heating Switch

E263 - Mirror Folding Switch

F2 - Driver's Door Contact Switch Locations

F220 - Driver's Door Central Locking Lock Unit Locations

J386 - Driver's Door Control Module Locations

J519 - Vehicle Electrical System Control Module

L78 - Mirror Adjustment Switch Illumination

T6al - 6-Pin Connector

T8aa - 8-Pin Connector

T32a - 32-Pin Connector

V56 - Driver's Door Central Locking System Motor Locations

V161 - Driver's Door Central Locking (Safe) Motor Locations

(303) - Ground Connection 3 (in driver's door wiring harness)

(R76) - Connection 2 (58d) (in door control module wiring harness)

* - Only models with fold-in mirrors
