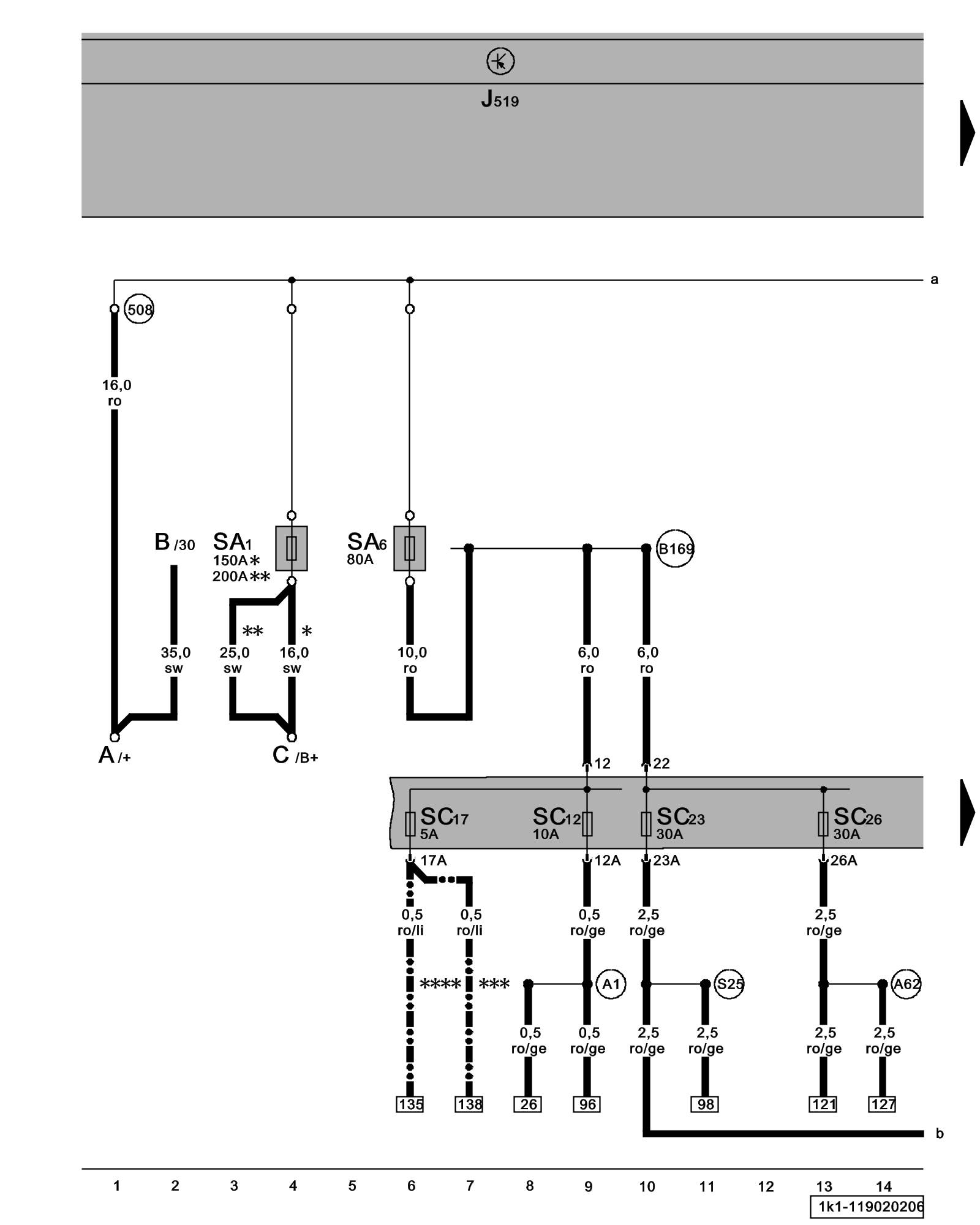

Diagram 119/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator (GEN)

J519 - Vehicle Electrical System Control Module

SA1 - Fuse 1 (on fuse panel A) Overview Of Fuses (SA), (SB)

SA6 - Fuse 6 (on fuse panel A) Overview Of Fuses (SA), (SB)

SC12 - Fuse 12 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

SC17 - Fuse 17 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

SC23 - Fuse 23 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

SC26 - Fuse 26 (on fuse panel C) Overview Of Fuses (SC) And Circuit Breaker

(508) - Threaded Connection terminal 30 (on electronics box)

(A1) - Plus Connection (30a) (in instrument panel wiring harness)

(A62) - Window Regulator Connection (in instrument panel wiring harness)

(B169) - Plus Connection 1 (30) (in interior wiring harness)

(S25) - Plus Connection (30a) (in central locking wiring harness)

* - Models with 90 A/ 120 A generator

** - Models with 140 A generator

_ . . _ - Only models with anti-theft alarm system

*** - Only models with alarm horn relay

**** - Only models without alarm horn relay
