Front Bucket Seat Backrest

Front Seat Covers and Upholstery

Front Bucket Seat Backrest

• Removal and installation of the components are described for the left seat. The same procedure applies for the removal and installation of the components of the right seat.

Removal

- Mount the fixture for seat repair (VAS 6136) on the engine and transmission holder (VAS 6095).

- Remove front seat. Refer to => [ Front Seat ] Front Seats

- Attach the seat to the fixture for seat repair (VAS 6136).

- Remove front left bucket seat trim. Refer to => [ Left Bucket Seat Trim ] Front Seats

- Remove the front seat belt latch:

• 2–door: => [ Belt Latch, 2-door ] Seat Belts

• 4–door: => [ Belt Latch, 4-door ] Seat Belts

- Remove front right bucket seat trim. Refer to => [ Right Bucket Seat Trim ] Front Seats

- Remove front bucket seat backrest. Refer to => [ Front Bucket Seat Backrest ] Front Seats

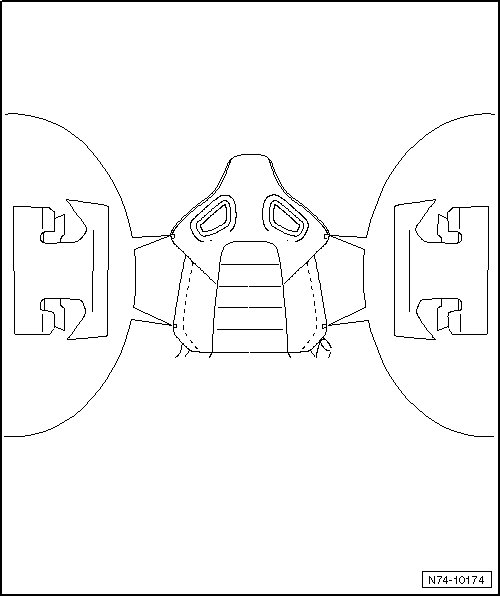

• From VIN 2615638, the backrest cover is secured to the backrest with additional clips (N.107.297.01).

• Remove clips carefully from surrounding channel with a suitable tool.

• When installing the clips, be sure to install them in their original positions.

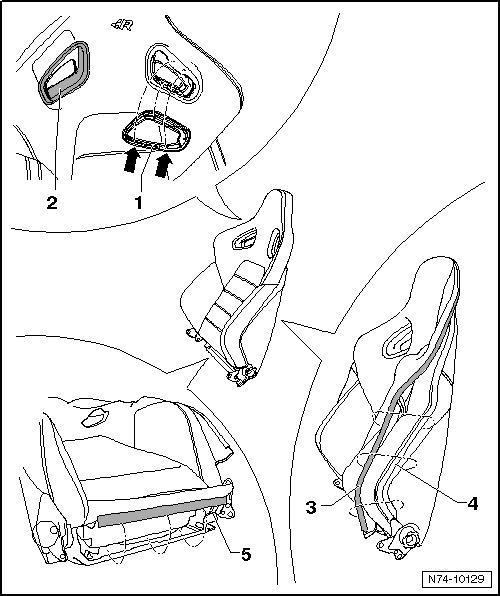

- Press left trim - 1 - on upper edge downward.

- Then remove trim from mounts in area of the two catches - arrows -.

- Remove right trim - 2 - in the same way.

- Remove surrounding profile - 3 - in side area of backrest from surrounding channel - 4 -.

- In lower area of backrest, remove profile - 5 - from mount.





- Loosen all Velcro strips - 1 - on cover from depression in upholstery - 2 -.

- Remove upholstery from backrest frame.





Installation

- To install, perform the steps used for removal in reverse order.
