Left Power Seat Trim

Front Seats

Left Power Seat Trim

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removal

- Switch off ignition.

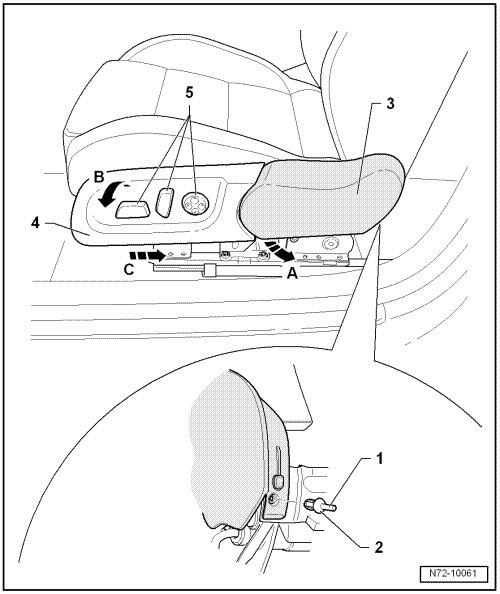

- Press clamping pin - 1 - inward and remove securing clip - 2 -.

- Pull rear trim - 3 - outward and then swing trim downward - arrow A -.

- Remove rear trim from seat.

- Pull front trim - 4 - upward and then swing trim outward - arrow B -.

- Push front trim toward rear - arrow C -.

- Remove front trim from seat and disconnect wiring harnesses from switches - 5 -.





Installation

- To install, perform the steps used for removal in reverse order.
