Left Trim, Seat With Pass-Through

Front Seats

Left Trim, Seat with Pass-Through

Removal

- Remove front seat. Refer to => [ Front Seat ] Front Seat

- Remove the front seat belt latch:

• 2–door: => [ Belt Latch, 2-door ] Seat Belts

• 4–door: => [ Belt Latch, 4-door ] Seat Belts

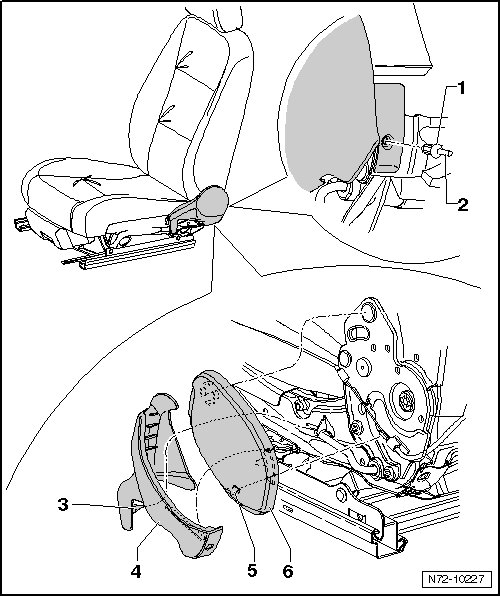

- Press clamping pin - 2 - and remove the clip - 1 -.

- Release the retaining hook - 3 - and remove the trim - 4 - from the seat.

- Release the retaining hook - 5 - and remove the trim - 6 - from the seat.





Installation

- To install, perform the steps used for removal in reverse order.
